Nickel strips, commonly known as nickel tabs or battery connector strips, generally refer to pure nickel strips or nickel plated steel strips used for spot welding lithium batteries.
Nickel plated steel battery connector strips, spot welding nickel strips, and nickel plated tabs are suitable for 18650, 21700, 26650, 26700, 32650 and other lithium battery cells.
Product Advantages: Easy to solder, low internal resistance, and good electrical conductivity.
Sold by kilogram.
Nickel plated steel strips are made from low carbon cold rolled steel strip (SPCC) with a nickel plated surface. After the large nickel plated coils are slit or cut into individual strips, the side edges of the finished nickel strips are not nickel plated.
Important Note: This product does not use stainless steel as the base material. Stainless steel nickel plated strips are generally not suitable for battery applications because their internal resistance is approximately three times higher than that of nickel plated steel strips. They are mainly suitable for battery connections in certain low current devices.
The substrate of nickel plated steel strips is low carbon cold rolled steel (SPCC) with a nickel plated surface. After the large nickel plated coils are slit or stamped into shape, the finished nickel strips or nickel tabs do not have a nickel plating layer on their side edges.
Nickel content ≥99.6%. Pure nickel strips offer low electrical resistance, good corrosion resistance, and excellent spot welding performance. They are commonly used in high power battery packs, energy storage battery packs, and other applications requiring reliable electrical connections.
Also known as nickel plated iron strip, this material uses low carbon steel as the substrate with a nickel plated surface. It offers a relatively low cost, good hardness, and good mechanical strength, making it suitable for standard 18650 and 21700 DIY battery packs and general battery assembly applications.
Pre stamped nickel tabs are battery connector pieces that have already been punched or formed. They can be directly used for battery pack assembly, including single cell connections, parallel connections, and other customized battery connection configurations.
Common thickness options include:
0.1 mm — suitable for low current applications
0.12 mm — suitable for compact battery connections
0.15 mm — commonly used for 18650 battery packs
0.2 mm — suitable for higher current applications and electric vehicle battery packs
0.3 mm — suitable for high power and power battery applications
0.05 to 0.08 mm — available for special thin foil applications
Common widths include:
2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, and 20 mm
Precision slitting is also available for customized widths and specific battery pack designs.
Nickel strips and nickel plated steel strips are commonly supplied in:

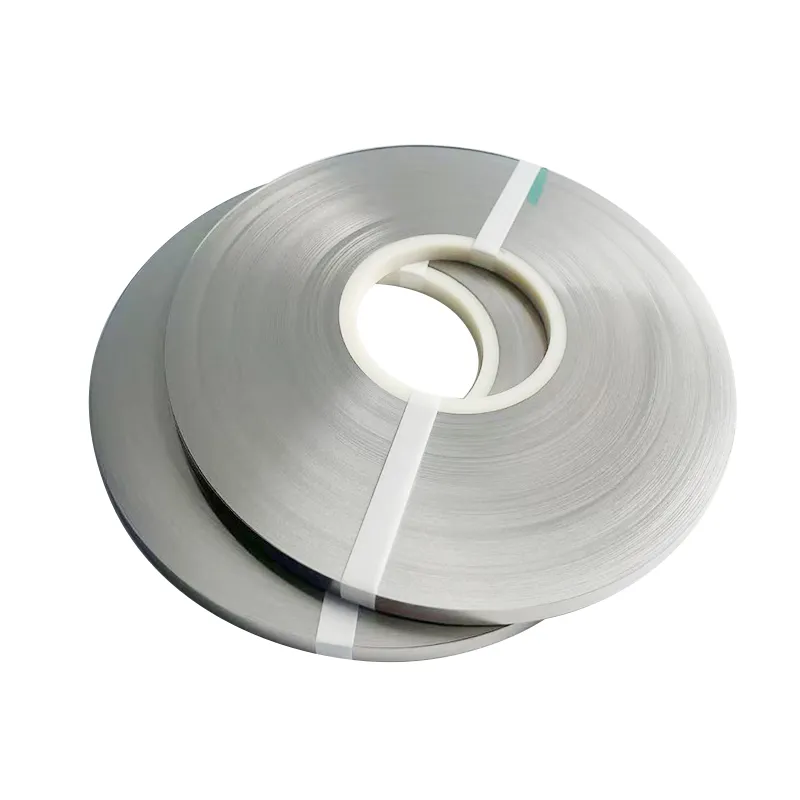

Coil rolls — typically ranging from several kilograms to dozens of kilograms per roll
Cut strips — individual strips cut to specified lengths
Pre stamped tabs — customized battery connector tabs ready for assembly
Custom punched pieces — formed according to specific battery pack requirements
These nickel strips and battery connector tabs are widely used for 18650, 21700, 26650, 26700, 32650 and other cylindrical lithium battery cells, providing reliable electrical and mechanical connections during battery pack assembly.
Single Nickel Strip for Battery Pack Assembly is a widely used battery interconnection material designed for joining cylindrical lithium battery cells and creating reliable electrical pathways within battery packs. Commonly supplied as pure nickel strip or nickel plated steel strip, this material is available in multiple thicknesses, widths, lengths, and shapes to accommodate different battery pack structures.
Nickel strips are particularly common in battery packs built from cylindrical cells such as 18650, 21700, 26650, 26700, and 32650 cells. During battery pack assembly, individual strips can be connected to cell terminals through resistance spot welding, laser welding, or other suitable joining processes. The selected nickel material, thickness, width, and connection configuration should be matched to the electrical current, thermal conditions, mechanical requirements, and welding equipment of the finished battery pack.
For battery assembly applications, nickel strip is valued for its combination of electrical conductivity, corrosion resistance, weldability, mechanical strength, and dimensional flexibility. Pure nickel is generally selected when lower electrical resistance and higher current-carrying capability are important, while nickel plated steel is often selected where cost efficiency, stiffness, and suitable welding performance are priorities.
This article provides an industry-focused overview of Single Nickel Strip for Battery Pack Assembly, including its definition, materials, common types, specifications, battery applications, welding considerations, advantages, limitations, storage requirements, and selection factors.
A single nickel strip is a narrow metallic strip used as an electrical connection component in battery pack construction. It can connect individual battery cells, cell groups, busbar structures, protection circuit components, and other conductive parts of a battery assembly.
The term “single nickel strip” generally describes an individual strip rather than a multi-layer composite strip or preassembled connector. Depending on the material, the strip may consist of commercially pure nickel or a steel substrate with a nickel coating.
The strip is usually supplied in a long roll for automated or semi-automated processing. It can also be supplied as individually cut pieces or precision stamped battery tabs. Manufacturers and battery assemblers can select specific dimensions based on the physical arrangement of cells and the required electrical connection.
Typical battery pack applications include:
18650 lithium battery packs
21700 lithium battery packs
26650 lithium battery packs
26700 lithium battery packs
32650 lithium battery packs
Portable power stations
Energy storage battery systems
Power tool battery packs
Electric mobility battery packs
Consumer electronic battery packs
DIY cylindrical cell battery packs
Industrial battery assemblies
Backup power battery systems
Battery modules and prototypes
A nickel strip does not function as the battery cell itself. Instead, it serves as an interconnection component between cells or between cells and electrical protection or output components.
Lithium battery packs often contain multiple individual cells connected in series, parallel, or a combination of both. The interconnection material must provide a reliable conductive pathway while remaining compatible with the battery assembly process.
For cylindrical cells, nickel strips are commonly positioned across cell terminals and attached by spot welding. The welding process creates localized electrical and mechanical connections between the strip and the cell terminal.
A properly selected strip can help provide:
Stable electrical connection
Consistent welding performance
Suitable mechanical attachment
Controlled electrical resistance
Good corrosion resistance
Convenient battery pack assembly
Flexible connection layouts
Compatibility with automated processing
The appropriate strip specification depends on more than thickness alone. Width, material composition, welding parameters, current requirements, cell configuration, strip length, connection geometry, and thermal conditions all influence the performance of the finished battery pack.
18650 cells are among the most widely recognized cylindrical lithium battery formats. The name 18650 refers approximately to a cell diameter of 18 mm and a length of 65 mm.
Nickel strip is commonly used when assembling multiple 18650 cells into a battery pack. The strip can be cut to appropriate lengths and positioned across the cell terminals according to the required series and parallel configuration.
For 18650 battery pack assembly, commonly encountered nickel strip thicknesses include 0.1 mm, 0.12 mm, 0.15 mm, 0.2 mm, and 0.3 mm. The most suitable thickness depends on the intended application and electrical load.
A thinner strip may be suitable for lower current applications, compact connections, or applications where reduced material mass is important. A thicker or wider strip can provide a larger conductive cross-sectional area and greater mechanical rigidity.
However, selecting the thickest strip is not automatically the best solution. The welding equipment must be capable of producing a suitable connection without damaging the cell terminal or creating excessive heat.
21700 cylindrical cells are larger than 18650 cells and are increasingly used in applications requiring higher energy capacity or higher power capability.
Nickel strips for 21700 battery pack assembly are available in similar material categories and thickness ranges. Because the electrical and thermal requirements of a 21700 pack can differ from those of an 18650 pack, the strip should be selected according to the actual design rather than cell size alone.
Common considerations include:
Cell arrangement
Series and parallel configuration
Maximum operating current
Continuous current requirement
Peak current requirement
Welding equipment
Strip width
Strip thickness
Required mechanical strength
Thermal environment
Battery management system configuration
A battery pack using 21700 cells may require wider or thicker interconnection material depending on its electrical design.
26650 cells have a larger cylindrical format and are used in various energy storage, power, industrial, and specialized battery applications.
Nickel strips can be used to connect 26650 cells in series and parallel configurations. Because larger cylindrical cells may be used in higher-current applications, the connection design should consider the complete electrical path rather than relying solely on the nominal strip specification.
The effective conductive cross-sectional area is determined by strip width and thickness. Increasing either dimension can change the resistance and current-carrying characteristics of the connection.
The strip should also be compatible with the selected welding method and electrode geometry.
Nickel strips are also used with larger cylindrical battery cells such as 26700 and 32650 formats.
These battery formats can be found in energy storage systems, power equipment, industrial applications, and other battery assemblies.
The appropriate nickel strip specification depends on the battery design. Wider strips, thicker strips, multiple parallel strips, or specially formed tabs may be considered when higher current requirements exist.
The final configuration should always be evaluated as a complete battery interconnection system rather than considering the strip in isolation.
Battery connection strips are generally divided into two major material categories:
Pure nickel strip
Nickel plated steel strip
These two materials can look similar but have different mechanical, electrical, and manufacturing characteristics.
Pure nickel strip is manufactured from nickel-based metal with a very high nickel content. Common commercial grades used in battery interconnection applications include N6 and Ni200, depending on the material specification and supply standard.
A commonly referenced pure nickel specification has a nickel content of approximately 99.6% or higher, although the exact composition depends on the selected grade and applicable material standard.
Pure nickel provides several useful characteristics for battery applications:
Good electrical conductivity
Good corrosion resistance
Good thermal stability
Good ductility
Good spot welding performance
Good resistance to oxidation
Reliable mechanical forming characteristics
Pure nickel strips are frequently considered for higher-performance battery pack applications where material consistency and electrical properties are important.
N6 is a commonly referenced high-purity nickel material in Chinese industrial supply chains. Depending on the applicable specification, N6 nickel may contain a high percentage of nickel with controlled levels of other elements.
N6 nickel strip can be supplied in narrow slit rolls, cut pieces, or stamped battery tabs.
Typical applications include:
Lithium battery packs
Energy storage systems
Power battery modules
Battery interconnection
Electrical connectors
Electronic components
Industrial battery assemblies
The actual material certificate and chemical composition should be confirmed according to the specific procurement specification.
Ni200 is a commercially pure nickel grade frequently used in industrial applications requiring nickel's corrosion resistance and thermal characteristics.
Ni200 nickel strip can be considered for applications requiring:
High nickel purity
Corrosion resistance
Stable material properties
Good formability
Electrical interconnection
Battery tab manufacturing
When specifying Ni200 for a battery application, the buyer should confirm the applicable standard, chemical composition, dimensional tolerance, surface condition, and mechanical properties.
Nickel plated steel strip is another common material for battery connection applications.
It generally consists of a low-carbon cold-rolled steel substrate, such as SPCC, with a nickel coating applied to the surface.
The steel substrate provides mechanical strength and stiffness, while the nickel coating provides a nickel-based surface suitable for the intended application.
Nickel plated steel strips can offer several practical advantages:
Lower material cost than pure nickel
Good mechanical strength
Good stiffness
Good forming performance
Suitable surface properties
Suitable spot welding performance when properly specified
Wide availability
Convenient roll processing
Nickel plated steel is commonly considered for cost-sensitive battery pack applications and general-purpose cylindrical cell assemblies.
SPCC is a commonly used designation for cold-rolled steel sheet and strip in the Japanese Industrial Standard system.
When used as the substrate for nickel plated battery strip, SPCC provides a relatively strong and economical base material.
The nickel plating provides the outer surface characteristics, while the steel core contributes to mechanical rigidity.
The structure can generally be described as:
Nickel coating → Steel substrate → Nickel coating
However, the exact coating structure depends on the manufacturing process.
An important characteristic of slit nickel plated steel strip is that the nickel coating may not extend across the newly exposed side edges after slitting.
For example, a large nickel plated coil may be slit into narrower strips. The original top and bottom surfaces remain nickel plated, while the newly created side edges can expose the steel substrate.
Therefore, the finished product should not be described as completely nickel coated on every surface unless the manufacturing process specifically provides edge plating.
Pure nickel and nickel plated steel can both be used for battery connections, but they are not identical.
Pure nickel generally provides a more consistent nickel material throughout the strip thickness. Nickel plated steel combines a steel core with a nickel surface layer.
Important differences include:
Pure nickel is primarily nickel.
Nickel plated steel contains a steel substrate with a nickel coating.
Pure nickel generally offers lower electrical resistance than steel-based nickel plated material.
Nickel plated steel has higher resistance because the conductive path includes the steel substrate.
Nickel plated steel generally provides higher stiffness and hardness because of its steel substrate.
Pure nickel is typically more ductile and easier to form in certain applications.
Nickel plated steel is generally more economical than high-purity nickel.
Pure nickel typically has a higher material cost.
Pure nickel is often selected for demanding electrical applications.
Nickel plated steel is commonly selected for general battery pack construction where cost and mechanical strength are important.
Nickel plated stainless steel should not automatically be considered an equivalent replacement for nickel plated low-carbon steel.
Stainless steel has different electrical and mechanical characteristics. Its electrical resistance can be significantly higher than that of low-carbon steel-based nickel plated strip or pure nickel.
For battery connections, increased resistance can lead to greater electrical losses and heat generation.
Therefore, material selection should be based on the intended current, connection resistance, welding characteristics, and thermal requirements.
For some low-current applications, alternative materials may be acceptable. For higher-current battery applications, the interconnection material should be carefully evaluated.
Battery nickel strips are available in a wide range of thicknesses.
Common thicknesses include:
0.05 mm
0.06 mm
0.08 mm
0.1 mm
0.12 mm
0.15 mm
0.2 mm
0.3 mm
Other custom thicknesses may also be available depending on manufacturing capabilities.
Very thin 0.05 mm nickel strip can be considered for compact electrical connections and applications where low material thickness is required.
Because thin material has a smaller cross-sectional area, its current-carrying capability should not be assumed to be equivalent to thicker strip.
The welding process must also be carefully controlled because thin metal can be more sensitive to excessive welding energy.
0.08 mm strip provides a slightly greater cross-sectional area than 0.05 mm strip while maintaining a thin profile.
It can be used for lightweight battery connections and compact battery structures where electrical requirements are relatively moderate.
0.1 mm nickel strip is one of the commonly encountered thin battery connection materials.
It may be used for:
Low-current battery packs
Small cylindrical cell assemblies
Compact battery connections
DIY battery packs
Electronic battery applications
The actual suitability depends on the current and connection design.
0.12 mm nickel strip provides an intermediate thickness suitable for many compact battery connection applications.
It can offer a balance between flexibility, welding behavior, mechanical strength, and electrical performance.
0.15 mm nickel strip is widely encountered in cylindrical lithium battery pack assembly.
It is frequently considered for 18650 battery pack applications and various general-purpose battery interconnections.
The actual current capability depends on the material type, strip width, connection length, temperature, and allowable voltage drop.
0.2 mm nickel strip provides greater cross-sectional area and mechanical rigidity than thinner strip.
It can be considered for higher-current battery interconnection applications, including some electric mobility and industrial battery assemblies.
However, thicker material generally requires greater welding energy and appropriate electrode configuration.
0.3 mm nickel strip is a relatively thick battery connection material.
It may be considered for power battery applications where greater mechanical strength and conductive cross-sectional area are required.
Because thicker strip can require significantly different welding parameters, the welding process should be validated before mass production.
Width is another important specification.
Common widths include:
2 mm
3 mm
4 mm
5 mm
6 mm
8 mm
10 mm
12 mm
15 mm
20 mm
Custom widths can be manufactured through precision slitting.
The width and thickness together determine the cross-sectional area of the strip.
For a rectangular strip:
Cross sectional area = Width × Thickness
For example, a 10 mm wide strip with a thickness of 0.15 mm has a nominal cross-sectional area of:
10 mm × 0.15 mm = 1.5 mm²
This value alone does not determine the safe operating current. Actual battery interconnection performance depends on material resistivity, connection length, temperature, cooling, welding quality, duty cycle, and the acceptable voltage drop and temperature rise.
Nickel strips can be supplied in long continuous rolls or cut to specific lengths.
Common supply formats include:
Continuous nickel strip is wound into coils for manual cutting, automated feeding, stamping, or battery pack assembly equipment.
Individual strips are cut to specified lengths for convenient assembly.
Nickel material is punched into predefined shapes for battery pack production.
Complex shapes can be produced according to battery pack design requirements.
Surface condition can influence welding and soldering behavior.
Typical surfaces include:
Bright nickel surface
Smooth nickel surface
Nickel plated surface
Clean metal surface
Rolled surface
Customized surface condition
The actual finish should be specified according to the welding or joining process.
Surface contamination, oil, oxidation, dust, and other foreign materials can affect electrical contact and welding consistency.
Spot welding is one of the most common methods for attaching nickel strips to cylindrical battery cells.
Resistance spot welding uses electrical current and pressure to create localized heating at the contact area.
The basic process involves:
Positioning the nickel strip on the cell terminal.
Applying electrode pressure.
Passing electrical current through the welding area.
Generating localized heat at the interface.
Forming a welded connection.
Allowing the weld area to cool.
The welding parameters must be adjusted according to the material, thickness, strip width, cell terminal condition, electrode configuration, and equipment.
A suitable nickel strip should work reliably with the selected welding equipment.
Important welding factors include:
Strip material
Strip thickness
Strip width
Surface condition
Electrode pressure
Welding current
Welding time
Pulse configuration
Electrode tip geometry
Cell terminal condition
Number of weld points
Welding sequence
Pure nickel and nickel plated steel may require different welding settings.
A parameter that works for 0.1 mm pure nickel should not automatically be applied to 0.2 mm nickel plated steel.
Testing should be performed before production.
Nickel strips can also be used in applications where soldering is required, although battery cell terminals should be handled carefully because excessive heat can damage cells.
A nickel strip with a clean surface may provide suitable solderability when compatible with the selected soldering process.
For battery applications, direct soldering onto cylindrical lithium cells is generally not the same as resistance spot welding. Thermal exposure must be considered carefully.
The phrase “easy to solder” should therefore be understood as a material processing characteristic rather than a recommendation to apply excessive heat directly to battery cells.
Low electrical resistance is an important characteristic of battery interconnection materials.
Every electrical connection introduces some resistance. When current flows through the strip, power is dissipated as heat.
The relationship can be represented by:
P = I²R
where:
P is power loss
I is current
R is resistance
This means that resistance becomes increasingly important as current increases.
For example, if current increases significantly, the heat generated by a given resistance increases rapidly.
Therefore, high-current battery packs require careful consideration of strip material, cross-sectional area, connection length, weld quality, and thermal management.
Pure nickel provides substantially better electrical conductivity than many steel-based materials.
Nickel plated steel provides the practical advantage of a nickel surface combined with a steel substrate, but its electrical characteristics are different from those of solid nickel.
When selecting between the two, designers should evaluate:
DC resistance
Current requirements
Voltage drop
Continuous current
Peak current
Temperature rise
Connection geometry
Total conductive path
A strip should be selected according to the complete electrical system rather than based only on its nominal material name.
There is no universal current rating that applies to every nickel strip.
The current capability depends on many factors.
These include:
Material resistivity
Strip thickness
Strip width
Strip length
Ambient temperature
Battery pack cooling
Continuous current
Pulse current
Duty cycle
Number of parallel strips
Welding resistance
Cell configuration
For this reason, a statement such as “0.15 mm nickel strip supports a specific current” should not be treated as universally valid.
Actual performance should be verified through electrical and thermal testing under the intended operating conditions.
A single strip uses one layer of conductive material between connection points.
A double strip configuration uses two layers or two parallel strips.
The choice depends on electrical requirements, mechanical structure, available space, welding capability, and thermal conditions.
Using multiple strips can increase conductive cross-sectional area and may reduce resistance when properly designed.
However, simply adding another strip does not automatically guarantee a proportional increase in current capability. The complete connection arrangement must be evaluated.
In a series battery configuration, cell voltages are added together.
Nickel strips can connect the positive terminal of one cell group to the negative terminal of another cell group.
The strip must provide a mechanically stable and electrically reliable connection.
Series connections are particularly important because resistance in the interconnection can contribute to voltage drop and heat generation.
Parallel connections increase the available capacity and current capability of a battery group.
Nickel strips can connect multiple cells within the same parallel group.
The connection design should distribute current evenly where possible.
Poor connection design can create uneven current paths, localized heating, and unequal electrical loading.
Therefore, strip width, length, welding points, and connection layout should be considered together.
Pre stamped nickel tabs are individual battery connection components produced by stamping, punching, or forming.
Compared with continuous strip, preformed tabs can reduce manual cutting and improve assembly consistency.
Common shapes include:
Straight tabs
L shaped tabs
U shaped tabs
T shaped tabs
Multi cell connector tabs
Parallel connection tabs
Series connection tabs
Custom battery tabs
Custom stamping can be useful for high-volume battery pack manufacturing.
Custom nickel strips can be produced according to specified dimensions.
Customization may include:
Thickness
Width
Length
Hole position
Hole size
Tab shape
Bending angle
Stamping pattern
Welding position
Coil size
Surface condition
Material grade
Custom strip designs can help improve battery assembly efficiency and reduce unnecessary material processing.
Nickel strips are commonly used in DIY cylindrical battery pack projects.
Typical DIY battery pack formats include 18650 and 21700 cells.
A DIY battery pack may use nickel strips for:
Series connections
Parallel connections
Cell group connections
BMS connections
Power output connections
Balance connections
DIY users should understand that lithium battery pack assembly involves electrical, thermal, and safety considerations. Appropriate welding equipment, cell holders, Insulation Materials, protective devices, and battery management systems should be selected according to the battery design.
Energy storage systems can contain large numbers of cylindrical cells.
Nickel strip can be used for cell interconnection in small and medium battery modules, depending on the electrical design.
Applications may include:
Portable energy storage
Backup power systems
Solar energy storage
Battery modules
Industrial energy storage
Emergency power systems
For high-power energy storage systems, the nickel strip should be evaluated together with busbars, cables, fuses, connectors, and other current-carrying components.
Battery-powered tools can require high current during operation.
Nickel strips can be used to connect cylindrical cells within power tool battery packs.
The connection material must be selected according to:
Motor current
Peak startup current
Continuous load
Battery configuration
Available space
Thermal conditions
Welding method
High-current power tool packs may require larger conductive paths than low-power consumer devices.
Portable power stations often contain multiple lithium cells connected in series and parallel.
Nickel strips may be used for internal cell connections, while larger busbars or cables can be used for higher-current pathways.
The appropriate material should be determined by the battery architecture.
Electric mobility batteries may operate at relatively high current levels.
Depending on the pack design, nickel strips may be used for individual cell group connections, while larger conductors are used for main current paths.
Applications can include:
Electric bicycles
Electric scooters
Small electric vehicles
Portable mobility systems
Light electric equipment
The connection design must account for continuous current, acceleration loads, vibration, temperature, and mechanical reliability.
Nickel strip offers several advantages for battery pack assembly.
Nickel and suitable nickel plated materials can be processed using resistance spot welding under appropriate conditions.
Nickel provides good resistance to corrosion and oxidation compared with many unprotected steel surfaces.
Nickel strip provides a convenient conductive path between battery cells.
Strip can be supplied in various widths and thicknesses.
Continuous rolls can be slit, cut, punched, stamped, and formed.
Nickel plated steel provides additional rigidity due to its steel substrate.
Battery tabs can be manufactured according to specific battery pack structures.
Coil material can be used with automated or semi-automated manufacturing equipment.
Nickel strip is not suitable for every battery interconnection application.
Potential limitations include:
Higher resistance than copper
Heat generation at high current
Welding requirements
Thickness limitations
Material cost for pure nickel
Potential edge exposure on slit nickel plated steel
Need for appropriate current path design
For very high-current battery systems, copper or copper-based busbar solutions may be considered depending on the battery architecture.
Copper has much higher electrical conductivity than nickel.
However, nickel is commonly used for direct battery cell welding because its welding behavior and compatibility with battery terminals can be advantageous.
Copper can provide lower resistance but may require specialized welding or plated interfaces for certain battery applications.
Therefore, nickel and copper should not be considered interchangeable simply based on electrical conductivity.
Aluminum is lightweight and has good electrical conductivity.
However, aluminum presents different welding, oxidation, and joining characteristics.
Nickel is often easier to integrate into certain cylindrical cell welding processes.
The selection between nickel, copper, aluminum, and composite materials should depend on the specific electrical and manufacturing requirements.
Dimensional consistency is important for automated battery assembly.
Important dimensions include:
Thickness
Width
Length
Coil inner diameter
Coil outer diameter
Flatness
Burr height
Edge condition
Slitting quality is particularly important because excessive burrs can interfere with assembly and may create unwanted mechanical or electrical contact.
The edge of a nickel strip can be produced through slitting, cutting, punching, or stamping.
A high-quality strip should have controlled edge characteristics.
Potential edge issues include:
Excessive burrs
Rough edges
Deformation
Uneven width
Cracking
Plating damage
For precision battery assembly, edge quality should be included in the product specification.
For nickel plated steel, plating thickness is an important specification.
The coating should provide suitable surface protection and process compatibility.
Actual nickel plating thickness can vary according to the intended application and manufacturing method.
Important quality parameters may include:
Average coating thickness
Minimum coating thickness
Surface coverage
Adhesion
Appearance
Corrosion resistance
The required coating specification should be agreed upon before production.
Clean surfaces are important for welding and electrical contact.
Contamination may include:
Oil
Dust
Metal particles
Oxide
Fingerprints
Processing residue
Proper storage and handling can help maintain surface quality.
Nickel strips should be stored in a clean and dry environment.
Recommended storage practices include:
Keep material away from moisture
Protect rolls from contamination
Avoid direct contact with corrosive substances
Keep packaging intact
Prevent mechanical deformation
Avoid excessive humidity
Use clean handling equipment
Nickel plated steel should receive particular attention because exposed steel at slit edges can be susceptible to corrosion under unfavorable environmental conditions.
Nickel strips can be packaged according to the form of supply.
Roll products may be packaged with:
Protective paper
Plastic film
Carton boxes
Wooden cases
Pallets
Cut strips can be separated into bundles or protective packages.
Stamped tabs may be packaged in trays, bags, cartons, or other protective containers.
Packaging should prevent deformation, contamination, scratching, and moisture exposure during transportation.
Nickel strip is frequently sold by weight rather than only by individual piece.
This is particularly convenient for roll material.
The actual length of material contained in one kilogram depends on:
Material density
Thickness
Width
Coil dimensions
Material type
Pure nickel and nickel plated steel have different densities, so the length per kilogram is not identical for strips with the same dimensions.
When purchasing by kilogram, buyers should specify material, thickness, width, coil configuration, and acceptable dimensional tolerance.
Selecting the right battery nickel strip requires consideration of several factors.
Determine whether the pack uses 18650, 21700, 26650, 26700, 32650, or another cylindrical cell.
Identify continuous current, peak current, voltage drop limits, and operating temperature.
Choose pure nickel when its electrical and material characteristics are required.
Choose nickel plated steel when cost efficiency and mechanical stiffness are important.
Choose a thickness appropriate for the current path and welding equipment.
Select a width that provides the required conductive cross-sectional area and fits the physical battery layout.
Test the strip with the intended resistance welding equipment.
Consider vibration, bending, movement, and assembly forces.
Specify thickness, width, length, tolerance, and edge condition.
Thickness influences several characteristics simultaneously.
Increasing thickness can generally increase cross-sectional area and mechanical rigidity.
However, thicker material may also:
Require higher welding energy
Increase forming force
Affect electrode penetration
Change weld nugget characteristics
Increase material cost
Reduce flexibility
Therefore, thickness should be selected according to the complete manufacturing process.
Width directly affects cross-sectional area.
For the same material and thickness, a wider strip generally provides a larger conductive path.
However, increasing width also affects:
Available cell surface area
Welding electrode positioning
Battery pack dimensions
Material consumption
Strip flexibility
Assembly process
A wider strip is not automatically better if it cannot fit the intended battery structure.
Battery Management Systems, commonly called BMS units, monitor and protect rechargeable battery packs.
Nickel strips can form electrical connections between cells and may also connect cell groups to BMS sensing points.
The BMS itself does not replace the physical interconnection provided by nickel strips.
The battery pack design should ensure that sensing connections and power connections are correctly separated and routed according to the BMS design.
Nickel strip is conductive and must therefore be positioned carefully within a battery pack.
Insulating Materials may be used around battery cells and conductive strips.
Common battery insulation materials include:
Fish paper
Polyester film
Polyimide film
Insulation tape
PVC insulation
Cell spacers
Terminal insulation rings
The insulation system should prevent accidental short circuits and provide suitable electrical and mechanical protection.
Battery pack assembly requires careful control because lithium batteries can deliver substantial electrical energy.
Nickel strips should be installed using appropriate equipment and procedures.
Important considerations include:
Preventing accidental short circuits
Using suitable welding parameters
Avoiding excessive cell heating
Inspecting weld quality
Protecting exposed conductive edges
Using suitable insulation
Checking battery polarity
Verifying BMS connections
Testing electrical continuity
Checking temperature during operation
Battery assembly should be performed by appropriately trained personnel using equipment suitable for the specific cell chemistry and pack design.
A reliable battery pack requires consistent weld quality.
Inspection methods may include:
Visual inspection
Pull testing
Peel testing
Electrical resistance testing
Weld consistency testing
Dimensional inspection
Microscopic examination
Production process monitoring
The appropriate inspection method depends on the manufacturing process and quality requirements.
Potential defects include:
Variation in thickness can influence welding and electrical resistance.
Width variation can affect automated assembly.
Excessive burrs can interfere with battery insulation and assembly.
Deep scratches can affect surface condition.
Nickel plated steel may exhibit coating irregularities if manufacturing controls are inadequate.
Improper storage may lead to surface oxidation or contamination.
Improper transportation can deform thin strip material.
A comprehensive quality control process may include:
Raw material inspection
Chemical composition verification
Thickness measurement
Width measurement
Length measurement
Surface inspection
Plating thickness inspection
Tensile testing
Hardness testing
Welding tests
Electrical resistance testing
Packaging inspection
For large-scale battery manufacturing, material traceability is also important.
Continuous nickel strip rolls can be integrated into automated battery assembly systems.
Automated processing may include:
Coil feeding
Straightening
Cutting
Punching
Stamping
Positioning
Welding
Consistent strip dimensions are particularly important for automation.
Material with stable width, thickness, flatness, and edge quality can help improve feeding reliability.
Nickel strip can be processed into battery tabs through stamping and forming.
The manufacturing process can create:
Straight tabs
Offset tabs
Connecting bridges
Multi-cell tabs
BMS connection tabs
Custom terminal tabs
The tab geometry should match the cell layout and welding position.
Precision slitting allows manufacturers to produce narrow strips according to customer requirements.
Custom widths can reduce material waste and improve battery assembly efficiency.
For example, a battery design may require a specific strip width that cannot be efficiently achieved using standard stock widths.
Custom slitting can provide more precise dimensional control.
Pre-cut nickel strips eliminate the need for manual cutting during battery assembly.
This can improve consistency and reduce labor requirements.
Custom length should be determined by:
Cell spacing
Number of cells
Welding position
Series connection layout
Parallel connection layout
Required overlap
Nickel strips are particularly suitable for cylindrical cell formats because they can be positioned along the curved or flat terminal structure of the cells.
Common cylindrical formats include:
18650
21700
26650
26700
32650
Other cylindrical formats may also use nickel interconnection strips.
Pure nickel strip can be supplied in multiple thicknesses.
The selection should consider the required current path and welding process.
For example, thinner pure nickel may be appropriate for compact low-current connections, while thicker material may be considered for larger conductive paths.
The final specification should be validated through testing.
Nickel plated steel is also available in various thicknesses.
Because the steel substrate provides mechanical strength, a relatively thin nickel plated steel strip can still provide useful rigidity.
However, electrical resistance is higher than an equivalent solid nickel strip in many cases.
Therefore, electrical requirements should be considered before selecting the material.
Low-current battery applications may use narrow and thin nickel strips.
Typical applications may include:
Small electronic devices
Sensors
Portable electronics
Small DIY battery packs
Low-power backup systems
The strip should still be appropriately sized for the actual current and temperature conditions.
Higher-current applications require careful interconnection design.
Potential approaches include:
Increasing strip width
Increasing strip thickness
Using multiple parallel strips
Shortening the conductive path
Improving welding quality
Using larger busbars where appropriate
For very high-current systems, a nickel strip may not be the optimal primary conductor.
Nickel has good resistance to corrosion and can provide a stable surface for battery connections.
Nickel plated steel can also provide useful environmental protection when the coating remains intact.
However, the exposed steel at slit edges should be considered when evaluating long-term environmental resistance.
Battery pack design should also consider humidity, condensation, salt exposure, temperature cycling, and other environmental conditions.
Electrical resistance causes heat generation.
As current increases, heat generation can increase substantially.
Therefore, battery pack designers should consider:
Strip resistance
Weld resistance
Contact resistance
Ambient temperature
Battery temperature
Cooling
Duty cycle
A nickel strip that performs adequately in a low-current application may not be appropriate for a high-current application.
Energy storage battery systems may require long-term reliable connections.
Nickel strips can be used in selected cell-level interconnection structures.
For larger systems, the overall architecture may combine:
Nickel strips
Copper busbars
Aluminum conductors
Cables
Fuses
Connectors
Each component should be selected according to its electrical and mechanical function.
Nickel strip is also useful for battery prototypes.
Engineers can test different:
Thicknesses
Widths
Materials
Welding parameters
Cell layouts
Connection patterns
Prototype testing can help determine the most appropriate interconnection configuration before mass production.
A typical nickel strip manufacturing process may include several stages.
Nickel or steel substrate material is prepared according to the required specification.
For nickel plated steel, the steel substrate receives a nickel coating.
The material is processed into large coils.
Wide coils are slit into narrow strips.
Continuous strips can be cut into individual pieces.
Special shapes can be produced through precision stamping.
Finished material is inspected for dimensional and surface quality.
The finished strips are protected and packaged for transportation.
Precision slitting is an important process for producing narrow battery strips.
Key slitting parameters include:
Width tolerance
Burr height
Edge quality
Flatness
Coil tension
Strip tracking
High-quality slitting helps produce consistent battery connection material.
Stamping can convert nickel strip into customized connector shapes.
Stamping advantages include:
High production speed
Consistent geometry
Repeatable dimensions
Reduced manual cutting
Suitable high-volume production
Tooling should be designed according to the strip material and required geometry.
When nickel strips are sold by kilogram, buyers should distinguish between:
Net material weight
Gross package weight
Coil weight
Core weight
The actual amount of usable strip depends on the product specification.
For industrial procurement, the order should clearly specify the material, dimensions, quantity, packaging, and weight tolerance.
A nickel strip is mainly used to create electrical and mechanical connections between battery cells and other conductive components in battery packs.
Yes. Nickel strips are widely used for cylindrical lithium battery pack assembly, including 18650 battery configurations.
Yes. Nickel strips can be used for 21700 battery packs when the material dimensions and electrical characteristics are appropriate.
Pure nickel is primarily nickel throughout its thickness. Nickel plated steel uses a steel substrate with a nickel coating.
Pure nickel generally provides lower electrical resistance than nickel plated steel because the latter contains a steel substrate.
No. Nickel plated steel and stainless steel are different materials. Nickel plated steel commonly uses low-carbon steel as the substrate, while stainless steel is an alloy with a different composition and electrical behavior.
Common thicknesses include 0.1 mm, 0.12 mm, 0.15 mm, and 0.2 mm, but the appropriate thickness depends on the specific battery design.
Nickel strip can be soldered when the material and surface condition are compatible with the soldering process. However, excessive heat should not be applied directly to lithium cells.
Yes. Resistance spot welding is a common method for connecting suitable nickel strips to cylindrical battery cells.
Yes. Custom width, thickness, length, stamping shape, hole pattern, and other dimensions can be specified according to the battery pack design.
Yes. Continuous nickel strip is commonly sold by weight, especially when supplied in coil form.
Common widths range from approximately 2 mm to 20 mm, with precision custom widths also available.
Nickel strips can be used with many cylindrical cell formats, including 18650, 21700, 26650, 26700, and 32650.
After a large plated coil is slit, the newly created side edges may expose the steel substrate. Therefore, the finished slit edge should not automatically be considered nickel plated.
A typical product specification can include:
Product Name: Single Nickel Strip for Battery Pack Assembly
Material Options: Pure Nickel, N6, Ni200, Nickel Plated Steel
Steel Substrate: SPCC or specified low-carbon cold rolled steel
Thickness: 0.05 mm, 0.08 mm, 0.1 mm, 0.12 mm, 0.15 mm, 0.2 mm, 0.3 mm
Width: 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 20 mm and custom widths
Form: Coil, cut strip, stamped tab, custom punched piece
Application: Battery pack assembly, cylindrical lithium battery connection, energy storage, power tools, portable power equipment
Compatible Cell Formats: 18650, 21700, 26650, 26700, 32650 and other cylindrical cells
Joining Methods: Resistance spot welding, suitable soldering processes, and other compatible joining methods
Supply Unit: Kilogram, roll, meter, piece, or customized packaging
The choice between common thicknesses should be based on electrical and mechanical requirements rather than thickness alone.
0.1 mm is suitable for compact and relatively low-current applications.
0.15 mm is a commonly used intermediate specification for general cylindrical battery pack assembly.
0.2 mm provides increased cross-sectional area and mechanical strength and may be considered for higher-current designs.
0.3 mm is suitable for applications requiring thicker interconnection material, but welding requirements can be more demanding.
The width must also be considered. A 0.1 mm wide strip and a 20 mm wide strip have completely different cross-sectional areas even when their thickness is identical.
Nickel strip is a small component, but it can have a significant influence on battery pack performance.
An appropriate interconnection material can help provide:
Stable electrical conductivity
Reliable cell connections
Consistent welding
Reduced connection losses
Suitable mechanical strength
Improved manufacturing efficiency
Better production consistency
An inappropriate strip can contribute to:
Excessive resistance
Voltage drop
Localized heating
Poor welding
Mechanical failure
Inconsistent battery performance
Therefore, nickel strip selection should be part of the overall battery pack engineering process.
Single Nickel Strip for Battery Pack Assembly is an important conductive component for cylindrical lithium battery pack construction. Available as pure nickel or nickel plated steel, it can be supplied in a broad range of thicknesses, widths, lengths, and customized shapes.
Pure nickel strip, including commonly referenced N6 and Ni200 materials, is generally selected when high nickel content, corrosion resistance, reliable welding, and relatively low electrical resistance are important. Nickel plated steel strip, commonly based on low-carbon cold-rolled SPCC steel, offers a combination of mechanical strength, cost efficiency, and a nickel-plated surface suitable for many general battery pack applications.
Common thicknesses such as 0.1 mm, 0.12 mm, 0.15 mm, 0.2 mm, and 0.3 mm provide different combinations of flexibility, mechanical strength, cross-sectional area, and welding requirements. Common widths from 2 mm to 20 mm can accommodate different battery pack structures, while precision slitting, cutting, stamping, and forming can provide customized battery tabs.
Nickel strips are widely associated with 18650, 21700, 26650, 26700, and 32650 cylindrical lithium battery cells. They can be used for series connections, parallel connections, cell group interconnections, energy storage assemblies, power tool battery packs, portable power equipment, and other battery applications.
For reliable battery pack performance, the strip should not be selected by thickness alone. Material type, electrical resistance, cross-sectional area, welding parameters, connection geometry, temperature, mechanical requirements, insulation, and the complete battery architecture should all be evaluated.
A properly specified Single Nickel Strip for Battery Pack Assembly can provide a practical and efficient solution for creating consistent electrical connections in cylindrical lithium battery packs.
WhatsApp
Phone
