PVC Heat Shrink Tubing for Electrical Insulation Projects is a flexible thermoplastic insulation material designed to provide electrical protection, mechanical coverage, surface protection, and organized sleeving for wires, cables, battery components, electronic assemblies, and other electrical parts. PVC Heat Shrink Tubing and heat shrink film are widely used where a controlled heating process is required to make the material contract around a component and form a close-fitting protective layer.
The product described in this guide can also be presented as PVC Heat Shrink Film Battery Sleeve Heat Shrink Tubing or, in a more natural product-page format, PVC Heat Shrink Film for Battery Sleeves and Shrink Tubing. These descriptions are suitable for applications involving battery sleeves, electrical insulation, cable protection, component insulation, and general industrial electrical assembly.
PVC heat shrink products are valued for their combination of flexibility, electrical insulation, ease of processing, dimensional adaptability, and cost efficiency. Depending on the construction and formulation, PVC shrink materials can be supplied in different widths, thicknesses, colors, shrink ratios, and finished dimensions to accommodate different electrical insulation projects.
For battery applications, PVC heat shrink film can be used as an external sleeve around cylindrical or shaped battery assemblies. For electrical projects, the same general material category can be used to cover wire bundles, protect soldered connections, organize electrical components, and provide an additional insulation layer around suitable components.
The product specification covered in this page includes a flat width range of 30–680 mm, wall thickness of 0.08–0.15 mm, a nominal shrink temperature of 80°C, an operating temperature range of -40°C to 105°C, a temperature resistance rating of 120°C, transverse shrinkage of 40%–50%, and longitudinal shrinkage of 8%–15%. Available colors include blue, fruit green, black, and custom colors.
These specifications should be treated as product-specific reference values. Actual performance can vary according to material formulation, processing conditions, heating equipment, finished dimensions, component geometry, and application environment.
The product name can be expressed in several ways depending on the intended application and page structure.
PVC Heat Shrink Film Battery Sleeve Heat Shrink Tubing
PVC Heat Shrink Film for Battery Sleeves and Shrink Tubing
PVC Heat Shrink Tubing
PVC Heat Shrink Film
PVC Heat Shrink Sleeve
PVC Battery Shrink Sleeve
PVC Battery Sleeve
PVC Shrink Film
PVC Insulation Tubing
PVC Electrical Shrink Tubing
PVC Heat Shrink Sleeve Material
PVC Shrink Sleeve Film
PVC Electrical Insulation Sleeve
PVC Wire Insulation Sleeve
PVC Cable Protection Sleeve
PVC Battery Insulation Sleeve
The exact terminology used should reflect the physical product supplied. Tubular material is normally described as heat shrink tubing or heat shrink sleeve, while flat material that is formed or wrapped around a component may be described as heat shrink film or shrink sleeve film.
For battery applications, battery sleeve, battery shrink sleeve, and PVC battery insulation sleeve are useful descriptions because they clearly communicate the intended function. For electrical applications, PVC heat shrink tubing for electrical insulation provides a direct and technically understandable product description.
Product Specifications
The following table summarizes the supplied specifications for this PVC heat shrink product.
| Specification | Value |
|---|---|
| Product Name | PVC Heat Shrink Film for Battery Sleeves and Shrink Tubing |
| Material | PVC |
| Product Type | Heat Shrink Film and Tubing |
| Flat Width | 30–680 mm |
| Wall Thickness | 0.08–0.15 mm |
| Shrink Temperature | Approximately 80°C |
| Operating Temperature Range | -40°C to 105°C |
| Temperature Resistance Rating | 120°C |
| Transverse Shrinkage | 40%–50% |
| Longitudinal Shrinkage | 8%–15% |
| Standard Colors | Blue, Fruit Green, Black |
| Custom Colors | Available according to requirements |
| Main Function | Electrical insulation and protective sleeving |
| Typical Applications | Batteries, wires, cables, electrical components, electronic assemblies |
| Processing Method | Controlled heating and shrinking |
What Is PVC Heat Shrink Tubing?
PVC heat shrink tubing is a polymer-based protective sleeve that contracts when exposed to an appropriate heat source. Before heating, the tubing has a larger diameter or expanded form. After controlled heating, it contracts around the underlying component and creates a close-fitting protective covering.
The heat shrink process allows one material to accommodate different component dimensions while maintaining a relatively neat finished appearance. The material can be supplied in different widths and wall thicknesses, making it useful for small electrical components as well as larger battery assemblies and industrial insulation structures.
PVC is commonly selected for heat shrink products because it can offer flexibility, electrical insulation, processability, and a practical balance between performance and cost. PVC formulations can also be modified to achieve different levels of flexibility, shrink performance, flame resistance, color, and mechanical properties.
In electrical insulation projects, heat shrink tubing is often used as a secondary insulation or protective layer rather than as the sole insulation system for every application. The suitability of the material depends on voltage, temperature, mechanical stress, chemical exposure, installation conditions, and applicable safety requirements.
What Is PVC Heat Shrink Film?
PVC heat shrink film is a thin PVC material designed to shrink when heated. Unlike conventional rigid PVC sheets, heat shrink film is engineered for dimensional contraction during processing.
Heat shrink film can be manufactured in flat or tubular forms. Flat film can be wrapped, formed, or processed into sleeves. Tubular products are supplied as sleeves that can be positioned directly over cables, battery cells, wire bundles, connectors, and other suitable components.
The supplied flat width range of 30–680 mm provides flexibility for applications involving different component sizes. A width of this type can be particularly useful for battery assemblies, larger electrical components, industrial cable bundles, and custom insulation applications.
The 0.08–0.15 mm wall thickness range provides a lightweight insulation and protection layer while maintaining the flexibility required for heat shrinking.
PVC Heat Shrink Film for Battery Sleeves
Battery sleeves are an important application for heat shrink materials. A battery sleeve can provide electrical isolation, surface protection, identification, and mechanical coverage around a battery cell or battery assembly.
PVC heat shrink film can be positioned around a battery component and heated so that the material contracts around the surface. The resulting sleeve can help prevent direct contact between the battery surface and external conductive objects.
Battery sleeves are commonly used on cylindrical battery cells, battery packs, rechargeable battery assemblies, electrical storage components, and other compact power units.
The selection of a battery sleeve should consider the battery's dimensions, terminal configuration, operating temperature, charging conditions, mechanical requirements, and the required electrical insulation performance.
For battery applications, shrink behavior is especially important. A transverse shrinkage range of 40%–50% allows the material to contract substantially around the component. The longitudinal shrinkage range of 8%–15% indicates that some length reduction may occur during heating.
The installer should account for this dimensional change when cutting the original sleeve length.
PVC Heat Shrink Tubing for Electrical Insulation
Electrical insulation is one of the most common uses for heat shrink tubing. Electrical conductors and components may require additional insulation after cutting, soldering, crimping, joining, or assembly.
PVC heat shrink tubing can be placed over a suitable electrical connection and heated until it contracts around the connection. This creates a protective sleeve that can help reduce the risk of accidental contact, abrasion, contamination, and mechanical damage.
Typical electrical insulation applications include:
Wire end insulation
Cable joint protection
Solder joint insulation
Connector insulation
Terminal insulation
Battery lead protection
Wire bundle organization
Electrical component sleeving
Small transformer component insulation
Motor wiring protection
Electronic assembly protection
Sensor wire protection
Control wiring insulation
Low voltage electrical assemblies
The actual electrical rating of a PVC heat shrink product must always be confirmed against its technical data and intended application. The phrase "electrical insulation" does not automatically mean that every heat shrink product is suitable for high-voltage applications.
Key Advantages of PVC Heat Shrink Tubing
PVC heat shrink tubing provides a nonconductive covering around suitable electrical components. This can help isolate conductive surfaces from accidental contact.
The flexible structure allows the material to be positioned around wires, cables, battery assemblies, and irregular surfaces before heating.
Heat causes the material to contract in a predictable manner when the product is processed within the recommended temperature range.
The sleeve can help protect covered components from scratches, abrasion, dust, and routine handling damage.
Colored heat shrink tubing can be used to visually organize wires and electrical assemblies.
PVC shrink film can provide an insulating outer layer around battery cells and battery packs.
A flat width range from 30 mm to 680 mm allows the product to accommodate a broad range of applications.
A thickness range of 0.08–0.15 mm allows the material to provide coverage without adding excessive bulk.
Blue, fruit green, black, and customer-specified colors can support product identification and appearance requirements.
A nominal shrink temperature of approximately 80°C supports controlled heat-shrink processing with suitable heating equipment.
Detailed Technical Specification
| Property | Specification |
| Base Polymer | PVC |
| Material Form | Film, sleeve, or tubing |
| Flat Width | 30–680 mm |
| Thickness | 0.08–0.15 mm |
| Shrink Activation Temperature | Approximately 80°C |
| Operating Temperature | -40°C to 105°C |
| Temperature Resistance Rating | 120°C |
| Transverse Shrinkage | 40%–50% |
| Longitudinal Shrinkage | 8%–15% |
| Standard Color Options | Blue, Fruit Green, Black |
| Custom Color | Available |
| Primary Application | Electrical insulation |
| Secondary Applications | Battery sleeving, wire protection, component covering |
| Processing | Heat shrinking |
| Material Characteristics | Flexible, insulating, shrinkable |
| Product Configuration | Flat film or tubular sleeve depending on design |
Understanding Flat Width
Flat width is an important specification for PVC heat shrink film and tubing.
For a tubular product, flat width generally refers to the width measured when the tube is laid flat. It helps users determine whether a particular sleeve size is suitable for a target component.
The supplied flat width range is:
30–680 mm
This broad range can support applications from relatively small electrical components to larger battery and industrial assemblies.
When selecting a product, users should not rely only on flat width. The final application should also consider the component circumference, diameter, shape, required shrink ratio, wall thickness, and installation method.
For irregular components, additional allowance may be necessary to ensure that the sleeve can be positioned without excessive stretching before heating.
Understanding Wall Thickness
Wall thickness influences the physical characteristics of the finished insulation sleeve.
The supplied wall thickness is:
0.08–0.15 mm
A thinner wall can provide a lightweight and compact protective layer. A thicker wall can provide additional material coverage and may offer improved resistance to handling and surface abrasion, depending on the formulation.
Wall thickness may change during the heat shrinking process because the material contracts. Therefore, users should evaluate both the original specification and the expected finished condition.
For precision electrical assemblies, thickness tolerance should be considered when calculating clearances around connectors, terminals, battery housings, or other components.
Shrink Temperature
The specified shrink temperature is:
Approximately 80°C
Shrink temperature describes the temperature at which the material begins or is intended to undergo significant thermal contraction under the specified processing conditions.
The actual surface temperature of the product during processing depends on the heating method, heating distance, airflow, exposure time, material thickness, and surrounding environment.
Common heating equipment may include:
Hot air equipment
Controlled heat guns
Industrial heating systems
Thermal chambers
Specialized shrink processing equipment
Uniform heating is important because excessive localized heat can damage polymer materials, while insufficient heat may result in incomplete shrinkage.
Operating Temperature Range
The specified operating temperature range is:
-40°C to 105°C
This range indicates the stated service-temperature range for the product specification. It does not mean that the material should be continuously exposed to the maximum temperature under every operating condition.
Electrical applications should consider:
Ambient temperature
Internal component temperature
Heat generated by current flow
Duration of exposure
Mechanical stress
Chemical environment
Heating and cooling cycles
Installation conditions
The actual service temperature should remain within the product's technical requirements.
Temperature Resistance Rating
The listed temperature resistance rating is:
120°C
Temperature resistance rating and continuous operating temperature are related but should not automatically be treated as identical values.
A product can have a temperature resistance value that represents a test condition, short-term exposure, or material performance threshold, while the recommended continuous operating temperature may be lower.
For demanding electrical insulation applications, users should consult the specific technical data available for the selected material grade.
Transverse Shrinkage
The specified transverse shrinkage is:
40%–50%
Transverse shrinkage describes contraction across the width or circumference of the material during the heat-shrink process.
This is one of the most important characteristics when selecting a heat shrink sleeve.
A high transverse shrinkage capability allows the material to adapt to smaller final dimensions after heating. It can help the sleeve conform closely to the underlying component.
The actual final dimensions depend on:
Initial dimensions
Component geometry
Heating temperature
Heating time
Heating uniformity
Material formulation
Shrink ratio
Processing method
Longitudinal Shrinkage
The specified longitudinal shrinkage is:
8%–15%
Longitudinal shrinkage describes dimensional contraction along the length of the sleeve.
Because the product may shorten during heating, installers should consider the required final coverage before cutting the material.
For example, when preparing battery sleeves or wire insulation sleeves, it is useful to allow sufficient initial length to compensate for expected longitudinal contraction.
The exact amount of shrinkage depends on the product and processing conditions.
Color Options
The standard color options include:
Blue
Fruit Green
Black
Custom colors can also be produced according to application requirements.
Color selection can provide several practical benefits. Different colors can be used for identification, polarity recognition, assembly organization, product appearance, and visual differentiation.
For electrical wiring, color should be selected according to the applicable wiring conventions and project requirements rather than solely for appearance.
For battery sleeves, custom colors can also support product identification and visual branding requirements without requiring a different base material structure.
Application Areas
PVC heat shrink tubing and film can be used in a wide variety of electrical and industrial applications.
| Application | Typical Function |
| Battery Cells | External insulation and protection |
| Battery Packs | Sleeve coverage and electrical isolation |
| Battery Modules | Surface insulation and component protection |
| Wire Connections | Insulation and protection |
| Cable Joints | Joint covering and mechanical protection |
| Solder Connections | Electrical isolation |
| Terminals | Protective sleeving |
| Connectors | Insulation and strain-related protection |
| Wire Bundles | Organization and surface protection |
| Electronic Components | Insulating coverage |
| Control Wiring | Electrical insulation |
| Sensor Wiring | Wire protection |
| Low Voltage Assemblies | Insulation and component separation |
| Industrial Equipment | Protective sleeving |
| Electrical Panels | Wire and component protection |
| Power Components | Supplemental insulation |
| Small Electrical Assemblies | Surface covering |
Battery Sleeve Applications
Battery sleeve applications require careful consideration of dimensional compatibility.
A battery sleeve should fit the battery assembly before heating while providing enough clearance for installation. Once heated, the sleeve should contract uniformly around the component.
PVC battery shrink film can be used for:
Cylindrical battery cells
Rechargeable battery packs
Battery modules
Portable power assemblies
Electronic battery compartments
Small energy storage assemblies
Battery lead insulation
Battery terminal protection
The sleeve can provide an external insulating barrier and help prevent accidental conductive contact.
However, the sleeve should not obstruct required battery safety components, pressure relief structures, thermal management systems, or electrical connections.
Wire and Cable Insulation Applications
PVC heat shrink tubing can be applied to individual wires and cable assemblies.
Typical uses include insulating exposed conductive sections, covering repaired insulation, organizing wires, and protecting cable connections.
Before installation, the correct tubing diameter or flat width should be selected. The tubing should be able to slide over the component without excessive force and should shrink sufficiently to provide secure coverage.
For cable joints, the sleeve length should extend beyond the connection area sufficiently to provide appropriate coverage.
The installation process should avoid overheating the conductor, connector, or surrounding insulation.
Connector and Terminal Protection
Connectors and terminals may contain exposed conductive areas that require additional protection after assembly.
Heat shrink tubing can provide a protective sleeve around suitable connector bodies and terminals.
Applications include:
Battery terminals
Wire terminals
Crimped connections
Soldered connections
Connector transitions
Electrical junctions
Small terminal assemblies
The selected sleeve must be compatible with the connector geometry. Sharp edges should be controlled because they may damage the sleeve during installation.
Electrical Insulation Performance
Electrical Insulation Materials are selected based on their ability to electrically separate conductive components.
PVC heat shrink tubing can serve as an insulating layer around suitable low-voltage and general electrical assemblies. Its effectiveness depends on wall thickness, material formulation, surface condition, installation quality, and environmental exposure.
Important electrical considerations include:
Dielectric strength
Insulation resistance
Leakage current
Working voltage
Temperature
Humidity
Surface contamination
Mechanical damage
For high-voltage applications, the specific electrical rating of the product must be confirmed before use.
Mechanical Protection
In addition to electrical insulation, heat shrink tubing can provide a degree of mechanical protection.
The sleeve may help protect wires and components against:
Light abrasion
Scratching
Handling damage
Surface contamination
Minor mechanical contact
Movement between adjacent components
The level of protection depends on wall thickness and material formulation.
Heat shrink tubing should not automatically be considered a replacement for heavy-duty mechanical protection where the assembly is exposed to severe abrasion, impact, crushing, or cutting forces.
Chemical and Environmental Considerations
PVC heat shrink materials may encounter environmental conditions such as moisture, dust, oils, cleaning agents, and industrial chemicals.
Material compatibility should be evaluated before use.
Potential environmental factors include:
Humidity
Water exposure
Oil
Solvents
Cleaning chemicals
UV exposure
Temperature cycling
Dust
Industrial contaminants
Where long-term outdoor exposure is expected, users should verify whether the specific PVC formulation is suitable for UV and weather exposure.
Advantages for Industrial Electrical Projects
PVC heat shrink tubing can simplify many electrical assembly processes because it combines flexibility, shrinkability, insulation, and visual identification in one product.
Industrial users may benefit from:
The material can be positioned around components before heating.
Heat shrinking can be completed relatively quickly with suitable equipment.
The finished sleeve can occupy relatively little space compared with rigid insulation components.
The 30–680 mm flat-width range allows the material to address different assembly sizes.
Different colors can support wiring and component identification.
The material can be used for selected battery sleeve applications.
Width, thickness, length, and color may be adjusted according to project requirements when supported by the manufacturing process.
PVC Heat Shrink Tubing Compared With Conventional Insulation Methods
Different electrical insulation methods provide different advantages.
| Insulation Method | Flexibility | Shrinkable | Typical Use |
| PVC Heat Shrink Tubing | High | Yes | Wire and component insulation |
| PVC Electrical Tape | High | No | Temporary or general insulation |
| Rigid Plastic Sleeve | Low to Medium | No | Fixed component protection |
| Insulation Sheet | Medium | No | Barriers and flat insulation |
| Adhesive Insulation Tape | High | No | Wrapping and surface insulation |
| Heat Shrink Film | High | Yes | Battery and component sleeves |
| Braided Sleeve | High | Usually No | Cable abrasion protection |
The most appropriate solution depends on the application geometry, electrical requirements, temperature, mechanical environment, and installation process.
Installation Procedure
Correct installation is important for achieving consistent results.
Determine the diameter, circumference, width, and length of the component to be covered.
Choose a PVC heat shrink sleeve or film with suitable dimensions and shrink capability.
Cut the material to the required length. Allow for the expected longitudinal shrinkage of approximately 8%–15%.
Place the sleeve over the component. Ensure that it covers the intended area.
Use an appropriate heating device and distribute heat evenly around the material.
Move the heat source gradually so the material contracts evenly.
Check for incomplete shrinkage, wrinkles, holes, excessive deformation, or signs of overheating.
Allow the sleeve to cool naturally before applying significant mechanical stress.
Installation Best Practices
Uniform heating is one of the most important factors in heat shrink installation.
The heat source should not remain in one location for too long. Excessive localized heat may cause surface damage, deformation, discoloration, or loss of desired material properties.
The installer should also avoid pulling the sleeve excessively during installation.
For battery sleeves, the sleeve should be positioned carefully to avoid covering critical safety features or electrical contacts.
For wire connections, the sleeve should cover the complete exposed conductive area and extend over adjacent insulation where appropriate.
Material Selection Guide
| Requirement | Recommended Consideration |
| Small Wire | Small diameter tubing |
| Large Cable | Larger flat width or tubing |
| Battery Cell | Battery sleeve size and shrink ratio |
| Battery Pack | Wide heat shrink film |
| Electrical Connection | Suitable insulation wall thickness |
| High Mechanical Stress | Verify mechanical properties |
| High Temperature | Confirm temperature rating |
| Outdoor Use | Confirm weather and UV suitability |
| Custom Appearance | Custom color |
| Compact Assembly | Thin wall material |
| Large Component | Wide flat width |
| Precise Installation | Controlled heating process |
Factors to Consider Before Ordering
Confirm the required flat width based on the component size.
Select the appropriate wall thickness based on insulation and mechanical requirements.
Check the transverse and longitudinal shrinkage values.
Verify both the shrink temperature and operating temperature.
Select standard blue, fruit green, black, or a custom color.
Determine the required finished length and compensate for longitudinal shrinkage.
Ensure that the PVC formulation is compatible with the application environment.
Verify voltage, insulation, dielectric, and safety requirements.
Consider abrasion, bending, impact, compression, and movement.
Product Quality Considerations
Quality control for PVC heat shrink products can include dimensional inspection, visual inspection, shrink testing, thickness measurement, and material performance testing.
Important quality parameters may include:
Flat width
Wall thickness
Shrinkage ratio
Shrink temperature
Surface appearance
Color consistency
Tensile properties
Elongation
Electrical insulation properties
Temperature resistance
Dimensional stability
Consistent dimensions are particularly important for automated or repeated production processes.
Surface Appearance
A high-quality PVC heat shrink product should generally have a consistent surface appearance appropriate to its intended application.
Users may inspect the material for:
Wrinkles
Holes
Cracks
Uneven thickness
Foreign particles
Color variation
Surface contamination
Excessive deformation
Minor visual characteristics may depend on manufacturing technology and material formulation, but significant defects should be evaluated before production use.
Custom Color PVC Heat Shrink Tubing
Custom color options can be useful when a project requires specific visual identification.
Standard colors for this product include:
Blue, Fruit Green, and Black
Customer-specified colors may also be possible depending on production requirements.
Custom colors may be used for:
Wire identification
Battery model differentiation
Product series identification
Assembly organization
Maintenance recognition
Equipment identification
Appearance requirements
Color consistency should be controlled when multiple production batches are used in the same project.
Custom Size PVC Heat Shrink Film
Different electrical components require different sleeve dimensions.
A broad flat-width range of 30–680 mm allows the product to address various applications.
Custom size requirements may include:
Flat width
Thickness
Finished diameter
Length
Shrink ratio
Color
Packaging format
Before ordering, the customer should provide accurate component dimensions and application information.
Packaging and Storage
PVC heat shrink film and tubing should be stored under appropriate environmental conditions.
Recommended storage considerations include:
Keep the material clean and dry.
Avoid prolonged exposure to direct sunlight.
Avoid excessive heat.
Protect the material from sharp objects.
Avoid unnecessary compression or deformation.
Keep the product in its original packaging where practical.
Maintain appropriate inventory rotation.
Storage conditions can affect the long-term appearance and processing performance of polymer materials.
Handling Precautions
Heat shrink products should be handled carefully before installation.
Avoid:
Excessive stretching
Sharp bending
Cutting with damaged tools
Contact with sharp edges
Uncontrolled heating
Excessive heat exposure
Contamination with incompatible chemicals
During installation, operators should follow appropriate workplace safety procedures when using hot air tools or other heating equipment.
Common Applications in Battery Manufacturing
PVC heat shrink sleeves can be incorporated into selected battery assembly processes.
Applications may include:
Individual battery cell sleeves
Battery pack outer insulation
Battery module covering
Battery terminal insulation
Battery lead insulation
Portable power supply assemblies
Rechargeable battery assemblies
Electronic device batteries
The material must be selected according to the battery chemistry, thermal environment, mechanical structure, and safety requirements of the final assembly.
Common Applications in Electronics
Electronic products frequently contain wires, terminals, connectors, and compact assemblies that benefit from additional insulation.
PVC heat shrink tubing may be used around:
Sensor wires
Small motors
Electronic connectors
Battery leads
Control wires
Terminal connections
Circuit assembly wiring
Small power assemblies
The compact nature of heat shrink tubing can make it useful in applications where conventional rigid insulation would require too much space.
Common Applications in Industrial Equipment
Industrial equipment may contain complex wiring systems and electrical components requiring organized insulation.
Potential applications include:
Control cabinets
Electrical panels
Motor wiring
Generator wiring
Industrial sensors
Control systems
Low voltage equipment
Power supply assemblies
Electrical connectors
Equipment harnesses
The correct product grade should be selected according to the equipment's temperature, voltage, chemical, and mechanical conditions.
Heat Shrink Tubing for Wire Identification
Color is a practical feature of PVC heat shrink tubing.
Blue, fruit green, and black sleeves can help distinguish different wire groups or assembly components.
Color coding may assist:
Manufacturing
Installation
Inspection
Maintenance
Troubleshooting
Component identification
However, color coding should always follow the relevant project or electrical standards.
Importance of Shrink Uniformity
Uniform shrinkage is essential for a clean and functional finished sleeve.
Uneven heating can cause:
Wrinkles
Uneven diameter
Partial shrinkage
Localized deformation
Excessive surface heating
Poor visual appearance
A controlled heating process helps achieve more consistent results.
For large sleeves, the heat source should be moved continuously around the circumference or across the surface instead of concentrating heat on one area.
Electrical Insulation Project Planning
Before selecting PVC heat shrink tubing for an electrical insulation project, engineers and installers should identify the application's key requirements.
A project assessment can include:
Component dimensions
Required finished sleeve dimensions
Electrical voltage
Operating temperature
Environmental exposure
Mechanical stress
Required insulation thickness
Shrink ratio
Color requirements
Production quantity
Installation equipment
Applicable safety standards
A complete evaluation helps reduce installation problems and improves consistency during production.
PVC Heat Shrink Tubing for Low Voltage Applications
PVC heat shrink products can be useful in low-voltage electrical assemblies where flexible insulation and component protection are required.
Typical examples include:
Battery wiring
Electronic equipment
Control circuits
Small power systems
Low-voltage connectors
Sensor assemblies
Portable electronic devices
The exact voltage suitability must be determined from the product's electrical performance data.
PVC Heat Shrink Tubing for Battery Pack Assembly
Battery pack construction often requires electrical separation between conductive components.
A PVC heat shrink sleeve can provide an external insulating layer around a battery pack and help protect the surface during handling.
The sleeve may also improve the visual appearance of the battery assembly and provide color-based identification.
When using shrink film on a battery pack, the installer should ensure that heat applied during shrinking does not adversely affect sensitive components.
PVC Heat Shrink Film for Industrial Insulation
PVC heat shrink film can be useful when an electrical component requires a flexible insulating cover that conforms to its shape.
The material can be used in selected:
Industrial electrical assemblies
Battery systems
Wiring systems
Electronic equipment
Electrical component protection
Insulation barriers
Cable assemblies
The appropriate material thickness and temperature grade should be selected according to the final application.
Performance Under Temperature Cycling
Electrical assemblies can experience repeated heating and cooling.
Temperature cycling may affect polymer materials through changes in flexibility, dimensional stability, and mechanical properties.
The specified operating range of -40°C to 105°C provides a reference for applications requiring exposure to a broad temperature range.
However, users should evaluate the complete assembly rather than considering the shrink tubing alone. The underlying wire, battery, connector, adhesive, and other components must also tolerate the same operating conditions.
Dimensional Stability
Dimensional stability is important when the sleeve must maintain coverage over time.
The initial shrinkage process changes the material dimensions. After installation, temperature fluctuations and mechanical stress can also influence the finished assembly.
For precision applications, users should evaluate:
Finished diameter
Finished length
Wall thickness
Shrink consistency
Thermal cycling behavior
Mechanical movement
These considerations are particularly relevant for battery assemblies and compact electronic devices.
Advantages of Thin Wall PVC Heat Shrink Film
The specified wall thickness of 0.08–0.15 mm provides a relatively thin material structure.
Potential advantages include:
Low added bulk
Flexible handling
Compact finished assembly
Easy positioning
Suitable coverage for small components
Efficient material usage
The final selection should balance thinness with the required mechanical and electrical protection.
Advantages of Wider PVC Heat Shrink Film
The flat width range extends up to 680 mm, allowing larger components to be covered.
Wider heat shrink film can be useful for:
Large battery packs
Wide electrical assemblies
Large cable bundles
Industrial insulation structures
Custom sleeves
Large component coverings
Large-format heat shrink material requires controlled heating to achieve consistent contraction.
Technical Selection Checklist
| Selection Item | What to Check |
| Material | PVC formulation |
| Width | 30–680 mm range |
| Thickness | 0.08–0.15 mm |
| Shrink Temperature | Approximately 80°C |
| Operating Temperature | -40°C to 105°C |
| Temperature Rating | 120°C |
| Transverse Shrinkage | 40%–50% |
| Longitudinal Shrinkage | 8%–15% |
| Color | Blue, fruit green, black, custom |
| Application | Battery or electrical insulation |
| Installation | Controlled heating |
| Electrical Rating | Confirm application suitability |
| Environmental Resistance | Verify as required |
| Mechanical Resistance | Verify as required |
Troubleshooting Common Installation Problems
Possible causes include insufficient heating, incorrect heating technique, or material selection.
The operator should verify the heat source, processing temperature, and product specifications.
This may result from excessive localized heat or prolonged heating.
Use controlled heating and avoid keeping the heat source stationary.
Wrinkles may result from uneven heating, incorrect sleeve dimensions, or component geometry.
A more uniform heating sequence can improve the finished appearance.
Longitudinal shrinkage should be considered before cutting the material.
The specified longitudinal shrinkage range is 8%–15%.
The initial dimensions may be inappropriate.
Review the component circumference, sleeve flat width, shrink ratio, and finished dimensions before installation.
Environmental and Safety Considerations
PVC heat shrink tubing should be used according to the technical requirements of the specific application.
Users should consider:
Operating temperature
Heating temperature
Electrical voltage
Fire safety requirements
Chemical exposure
UV exposure
Mechanical stress
Installation safety
When heating PVC materials, adequate ventilation and appropriate workplace safety practices should be maintained according to local requirements and the material's safety information.
Quality Inspection Before Shipment
For commercial applications, quality inspection may include:
Measure flat width and thickness according to the agreed specification.
Evaluate transverse and longitudinal shrinkage.
Check surface condition, color consistency, and visible defects.
Verify performance under specified temperature conditions when required.
Perform applicable insulation or dielectric testing when required by the product specification.
Ensure that the material is protected against contamination and damage during transportation.
Frequently Asked Questions
PVC heat shrink tubing is a thermoplastic sleeve that contracts when heated. It is commonly used for electrical insulation, battery sleeving, wire protection, and component covering.
PVC heat shrink film is used for battery sleeves, electrical insulation, wire protection, component covering, and other applications where a flexible shrinkable protective layer is required.
The specified shrink temperature is approximately 80°C.
The specified operating temperature range is -40°C to 105°C.
The stated temperature resistance rating is 120°C.
The specified flat width range is 30–680 mm.
The specified wall thickness range is 0.08–0.15 mm.
The specified transverse shrinkage is 40%–50%.
The specified longitudinal shrinkage is 8%–15%.
Standard colors include blue, fruit green, and black. Custom colors can also be specified.
Yes, PVC heat shrink material can be used for selected battery sleeve and battery insulation applications, provided the material's temperature, electrical, mechanical, and safety characteristics are suitable for the battery assembly.
Yes. It can be used for suitable electrical insulation applications such as wire connections, terminals, connectors, battery leads, and electronic assemblies. The specific voltage and insulation requirements must be verified for each application.
Depending on manufacturing capability, customization may include width, thickness, length, and color.
Longitudinal shrinkage causes the sleeve to shorten during heating. The specified 8%–15% range should be considered when calculating the initial cutting length.
Transverse shrinkage determines how much the sleeve contracts around the component. The specified 40%–50% range helps determine dimensional compatibility.
Recommended Product Description

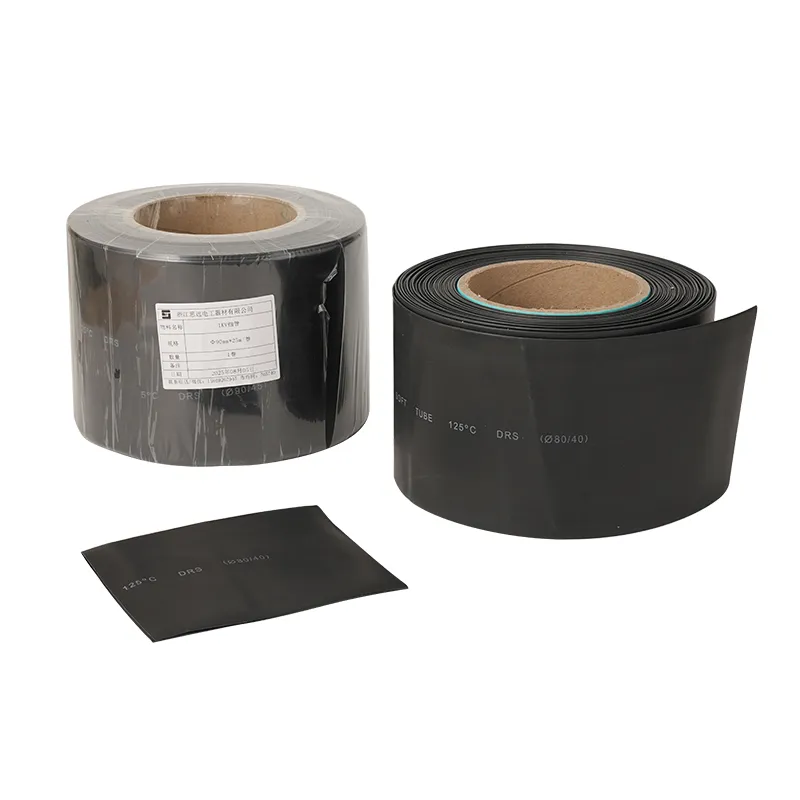

PVC Heat Shrink Film for Battery Sleeves and Electrical Insulation is a flexible PVC-based heat shrink material designed for battery sleeving, electrical insulation, wire protection, and component covering. The material is available in a flat width range of 30–680 mm with a wall thickness of 0.08–0.15 mm. It has a nominal shrink temperature of approximately 80°C, an operating temperature range of -40°C to 105°C, and a stated temperature resistance rating of 120°C. Transverse shrinkage is 40%–50%, while longitudinal shrinkage is 8%–15%. Standard colors include blue, fruit green, and black, with custom colors available according to project requirements.
The flexible construction allows the material to conform to suitable battery cells, battery packs, wires, cables, terminals, connectors, and electrical components after controlled heating. Its combination of shrinkability, electrical insulation, flexible handling, and customizable dimensions makes it suitable for a broad range of electrical and industrial insulation projects.
Recommended Product Page Content
PVC Heat Shrink Film Battery Sleeve Heat Shrink Tubing for Electrical Insulation
PVC Heat Shrink Film for Battery Sleeves and Shrink Tubing is a flexible electrical insulation material designed for battery sleeves, wire protection, cable insulation, terminals, connectors, and electrical component covering. With a flat width of 30–680 mm, thickness of 0.08–0.15 mm, shrink temperature of approximately 80°C, and transverse shrinkage of 40%–50%, the material provides flexible and practical coverage for various electrical assemblies.
PVC heat shrink material
Designed for battery sleeve applications
Suitable for electrical insulation projects
Flat width from 30–680 mm
Wall thickness from 0.08–0.15 mm
Shrink temperature approximately 80°C
Operating temperature from -40°C to 105°C
Temperature resistance rating up to 120°C
Transverse shrinkage of 40%–50%
Longitudinal shrinkage of 8%–15%
Blue, fruit green, and black standard colors
Custom colors available
Suitable for selected wire, cable, battery, and electronic applications
Flexible heat-shrink installation
Summary
PVC Heat Shrink Tubing for Electrical Insulation Projects provides a practical solution for applications requiring flexible electrical insulation, battery sleeving, wire protection, and component coverage.
The product specification presented in this guide includes a 30–680 mm flat width, 0.08–0.15 mm wall thickness, approximately 80°C shrink temperature, -40°C to 105°C operating temperature, 120°C temperature resistance rating, 40%–50% transverse shrinkage, and 8%–15% longitudinal shrinkage.
Blue, fruit green, black, and custom colors provide flexibility for electrical identification and product appearance. The material can be considered for battery sleeves, electrical connections, wire assemblies, electronic components, and industrial insulation projects when the selected grade meets the application's technical and safety requirements.
For best results, users should evaluate the complete application before selecting the material. Component dimensions, electrical requirements, temperature, mechanical stress, environmental exposure, shrink ratio, and installation method should all be considered.
PVC heat shrink film and tubing remain useful materials for electrical assembly because they combine flexible handling with heat-activated dimensional contraction. When properly selected and installed, they can provide a clean, compact, and practical insulation layer for a wide variety of electrical and battery-related products.
