A Lightweight Plastic Support Bracket is a molded plastic component designed to provide positioning, spacing, insulation, mounting, and assembly support in electrical equipment, battery modules, electronic assemblies, and industrial systems. Compared with conventional metal brackets, a lightweight plastic Support Bracket can reduce component weight while providing practical mechanical support and electrical isolation.
In cylindrical battery pack applications, plastic support brackets are particularly useful for organizing and securing battery cells during module assembly. For example, an 18650 straight-line battery holder can maintain a consistent cell spacing of approximately 19 mm while providing individual positioning holes with a typical diameter of 18.5 mm. The holder helps prevent cylindrical cells from shifting during assembly, welding, transportation, and operation.
Plastic support brackets are commonly manufactured using injection molding. Depending on the operating environment, manufacturers may select ABS, PC, PP, PA66, or other engineering plastics. Material selection should consider mechanical strength, temperature resistance, flame retardancy, electrical insulation, dimensional stability, chemical resistance, and production requirements.
This article provides an industry-focused overview of lightweight plastic support brackets, including their construction, materials, functions, specifications, battery applications, design considerations, customization options, and purchasing requirements.
A lightweight plastic support bracket is a structural or positioning component manufactured primarily from thermoplastic materials. Its main purpose is to support, locate, separate, align, or protect other components within an assembly.
Unlike decorative plastic parts, a support bracket normally has a functional mechanical role. It may contain holes, slots, ribs, clips, channels, mounting points, or positioning features designed around a specific component.
In battery applications, the term may refer to a cell holder, cell spacer, battery cell positioning bracket, or plastic battery support bracket. These terms can overlap depending on the design and industry terminology.
A lightweight plastic support bracket can perform several functions simultaneously:
Cell positioning
Component alignment
Electrical insulation
Mechanical separation
Assembly assistance
Airflow management
Cable routing
Welding clearance
Weight reduction
Protection against component movement
The actual design depends on the intended application.
For cylindrical battery packs, the support bracket generally contains circular openings that accommodate individual cells. The openings establish the position of each cell and maintain a predetermined distance between neighboring cells.
Lightweight Plastic Support Bracket for Cylindrical Battery Cells
Cylindrical lithium battery packs often contain multiple individual cells arranged in a specific electrical and mechanical configuration. Without a positioning component, cylindrical cells can move, rotate, or become misaligned during assembly.
A plastic battery support bracket provides a defined structure for organizing the cells.
For an 18650 straight-line configuration, a typical design may use:
18.5 mm nominal positioning hole diameter
Approximately 19 mm cell spacing
Single-row or multi-row configurations
Upper and lower holders
Ventilation openings
Nickel Strip clearance areas
Cable routing features
The actual dimensions should always be matched to the cell manufacturer's specifications, because cell dimensions can vary slightly between models and manufacturers.
The support bracket creates a physical positioning interface around the cylindrical battery cell. Each cell passes through or sits within a dedicated circular opening.
The bracket performs several functions at the same time.
The most important function is maintaining the relative position of individual cells.
Consistent spacing can improve:
Battery pack assembly accuracy
Nickel strip alignment
Welding consistency
Airflow arrangement
Overall module dimensions
Mechanical stability
A plastic support bracket can help maintain physical separation between adjacent cylindrical cells.
This separation is useful for assembly and insulation design, but the bracket should not automatically be considered the sole electrical insulation system. Battery pack designers should evaluate the complete insulation system, including cell wrapping, insulating films, busbars, spacers, and enclosure materials.
During battery pack assembly, the bracket can keep cells aligned while nickel strips are positioned and welded.
This reduces unwanted cell movement and can simplify the assembly process.
Some support brackets use open-grid structures, ventilation slots, or channels.
These openings can help maintain air passages between cells. The actual cooling performance depends on the complete thermal design of the battery pack.
Support Bracket vs. Structural End Plate
A Support Bracket Is Not a Structural End Plate.
A lightweight plastic support bracket is primarily a plastic positioning and assembly component. Its main functions can include cell alignment, spacing, electrical separation, airflow support, and assembly assistance.
A structural side plate or end plate has a different role.
Side plates and end plates used in prismatic battery modules may be manufactured from materials such as:
Aluminum
Steel
FR-4 Epoxy Board
Other structural materials
Structural end plates can provide mechanical compression, enclosure support, dimensional stability, or load-bearing functions.
The two component categories can be used together in a battery system, but they should not be treated as interchangeable.
| Component | Typical Material | Main Function |
|---|---|---|
| Lightweight Plastic Support Bracket | ABS, PC, PP, PA66 | Cell positioning and assembly support |
| Cell Holder | ABS, PC, PP, PA66 | Cell positioning and separation |
| Cell Spacer | Plastic or engineering polymer | Cell spacing and insulation support |
| Structural End Plate | Aluminum, steel, FR-4 | Structural support and load management |
| Battery Side Plate | Aluminum, steel, composite materials | Module reinforcement |
| Battery Enclosure | Metal or engineering plastic | External protection and structural enclosure |
This distinction is important when specifying a battery pack component.
Common Materials for Lightweight Plastic Support Brackets
Material selection has a significant influence on the performance of a lightweight plastic support bracket.
The most common materials include ABS, PC, PP, and PA66.
ABS is one of the most commonly used materials for plastic battery support brackets.
ABS offers a practical combination of:
Good rigidity
Good impact resistance
Easy injection molding
Good dimensional stability
Moderate temperature resistance
Good surface appearance
Cost effectiveness
For general battery pack applications, ABS can be an economical choice.
Flame-retardant ABS grades can also be specified where additional fire-performance requirements apply.
However, the exact temperature and flame-retardant performance should be confirmed from the material manufacturer's technical data.
Polycarbonate, commonly abbreviated as PC, is another material used for support brackets.
PC can offer higher temperature resistance than many general-purpose plastics and can provide good impact strength.
Typical advantages include:
Good impact resistance
Higher temperature capability
Good dimensional stability
Electrical insulation
Engineering-grade performance
PC may be considered when the support bracket is exposed to higher operating temperatures.
PP is widely used because of its relatively low material cost and chemical resistance.
Typical characteristics include:
Low density
Lightweight construction
Good chemical resistance
Good moisture resistance
Economical material cost
However, PP is generally softer and less rigid than ABS or PC. The bracket design may therefore need additional ribs, thicker sections, or other structural features.
PA66 is an engineering plastic that may be selected for applications requiring higher temperature resistance and mechanical performance.
Potential advantages include:
High mechanical strength
Good wear resistance
Higher temperature capability
Good dimensional performance
Good resistance to mechanical stress
PA66 can absorb moisture, so environmental conditions and dimensional requirements should be considered during material selection.
Material Comparison
| Material | Typical Advantage | Typical Consideration | Suitable Applications |
|---|---|---|---|
| ABS | Balanced strength and cost | Moderate temperature resistance | General battery packs |
| PC | Higher temperature capability | Higher material cost | Higher-temperature assemblies |
| PP | Lightweight and economical | Lower rigidity | Cost-sensitive applications |
| PA66 | High strength and temperature resistance | Moisture absorption and cost | Higher-temperature applications |
These material descriptions are general industry guidance rather than guaranteed specifications. Final material selection should be based on actual operating conditions and certified material data.
Common Specifications and Parameters
The following specifications represent typical parameters for an 18650 straight-line battery support bracket.
| Item | Typical Parameters |
|---|---|
| Compatible Cells | 18650 cylindrical battery cells |
| Cell Arrangement | Straight-line configuration |
| Cell Spacing | Approximately 19 mm |
| Positioning Hole Diameter | Approximately 18.5 mm |
| Arrangement Options | Single cell, 2 × 2, 2 × 3, 3 × 4, 4 × 5, etc. |
| Main Material | ABS |
| Alternative Materials | PC, PP, PA66 |
| Flame Retardancy | UL 94 V-0 grade available for suitable materials |
| ABS Temperature Range | Approximately 80–100°C depending on grade |
| PC Temperature Capability | Approximately 120°C depending on grade |
| PA66 Temperature Capability | Approximately 150°C or higher depending on grade |
| Color | Black is commonly used |
| Surface | Molded plastic surface |
| Features | Ventilation slots, cable channels, nickel strip clearance |
| Manufacturing Process | Injection molding |
| Environmental Requirement | RoHS compliant material options available |
Actual dimensions and performance should be confirmed against the final product drawing and material datasheet.

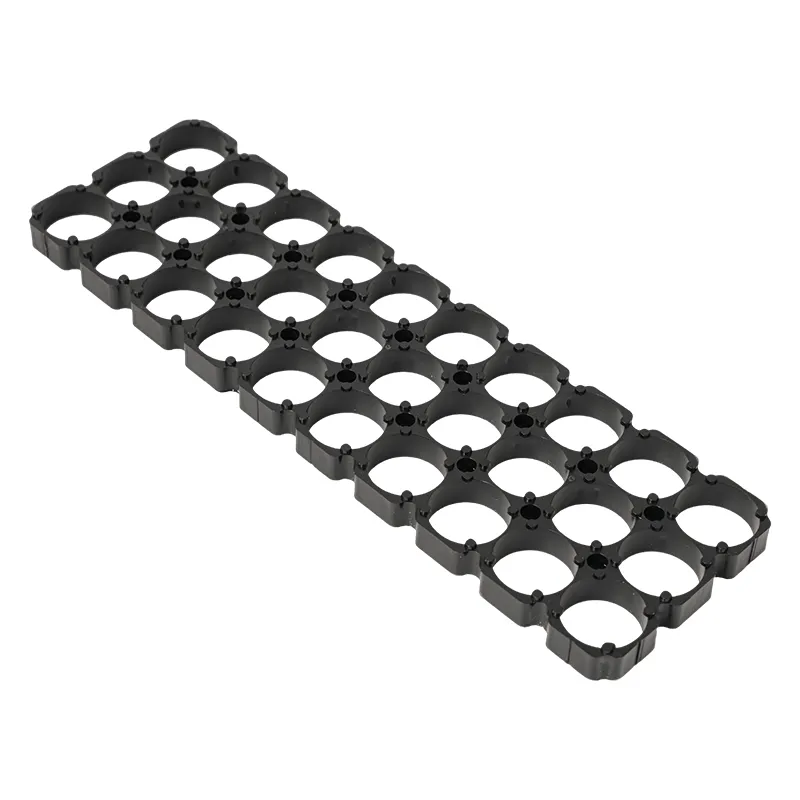

18650 Straight-Line Battery Holder
An 18650 straight-line battery holder is a common application of a lightweight plastic support bracket.
The term "straight-line" generally describes an arrangement in which cylindrical 18650 cells are positioned in a regular linear pattern rather than a staggered configuration.
The support structure establishes the center-to-center distance between adjacent cells.
A typical design may specify approximately:
19 mm cell spacing
and
18.5 mm positioning hole diameter
These dimensions are application-specific and should be verified against the actual cell dimensions.
Battery Cell Arrangement
The support bracket can be designed for different battery configurations.
Common arrangements include:
Single cell
2 × 2
2 × 3
3 × 4
4 × 5
4 × 6
5 × 5
Custom arrays
The exact number of cells supported by one bracket depends on its geometry and the required battery pack configuration.
For example, a bracket can be designed to support a specific number of cylindrical cells in a regular matrix.
The arrangement should be specified during the quotation process because it directly affects:
Mold design
Overall dimensions
Material consumption
Ventilation structure
Assembly method
Packaging requirements
Upper and Lower Support Brackets
Many cylindrical battery pack designs use matched upper and lower holders.
The upper support bracket positions one end of the cylindrical cells, while the lower support bracket positions the opposite end.
This configuration can provide:
Better cell alignment
Improved mechanical stability
Easier assembly
More consistent spacing
Better control of cell movement
The exact configuration varies according to battery pack design.
Some applications may require only one positioning layer, while others require two or more support levels.
Electrical Insulation Function
Plastic support brackets can provide an insulating barrier between components.
ABS, PC, PP, and PA66 are generally electrically Insulating Materials, but the actual insulation performance depends on:
Material grade
Thickness
Temperature
Moisture
Surface condition
Applied voltage
Creepage distance
Clearance distance
For battery applications, designers should evaluate electrical insulation as part of the complete system rather than relying exclusively on the support bracket.
Additional insulating components may include:
Insulating paper
PET film
Nomex paper
Fish paper
Heat shrink film
Insulating sleeves
Busbar insulation
Cell wrappers
Mechanical Positioning Performance
A major benefit of a plastic support bracket is mechanical positioning.
During battery assembly, cylindrical cells can shift due to handling, vibration, or welding forces.
A correctly designed holder can reduce unwanted movement.
Important design factors include:
The positioning hole must accommodate the cell without excessive clearance.
If the opening is too large, the cell may move excessively.
If the opening is too small, insertion may become difficult or may damage the cell surface.
The center-to-center spacing affects:
Battery pack dimensions
Heat dissipation
Nickel strip placement
Busbar arrangement
Welding accessibility
The wall thickness affects:
Mechanical strength
Injection molding performance
Weight
Material consumption
Dimensional stability
Reinforcing ribs can increase rigidity without requiring excessive material thickness.
Lightweight Design Advantages
The lightweight nature of plastic is one of the main advantages of this type of support bracket.
Compared with metal components, engineering plastics can significantly reduce component mass.
This can be beneficial in:
Portable battery packs
Electric tools
Consumer electronics
Mobile equipment
Battery-powered instruments
Lightweight energy storage systems
Weight reduction can also simplify handling during assembly.
Injection Molding Manufacturing
Most plastic support brackets are manufactured through injection molding.
The process generally involves:
Plastic material preparation
Material drying when required
Plastic melting
Injection into the mold
Pressure holding
Cooling
Mold opening
Part ejection
Inspection
Packaging
Injection molding is well suited to support brackets because it can produce repeated complex geometries at relatively high production volumes.
Mold Design Considerations
The mold has a significant influence on the final product.
Important considerations include:
Parting line
Draft angle
Gate location
Ejection system
Cooling channels
Wall thickness
Shrinkage compensation
Venting
Mold cavity configuration
For a battery cell holder, the mold must accurately reproduce the circular positioning holes and the required cell spacing.
Ventilation Design
Battery cells can generate heat during charging and discharging.
Some plastic support brackets therefore include ventilation slots or open-grid structures.
Possible ventilation features include:
Side openings
Vertical channels
Horizontal channels
Circular openings
Grid structures
Airflow gaps
The support bracket itself does not guarantee battery cooling performance.
Thermal performance depends on the complete battery system, including:
Cell arrangement
Heat generation
Airflow
Cooling fan
Heat sink
Thermal interface materials
Enclosure design
Ambient temperature
Nickel Strip Clearance
Nickel strips are commonly used in cylindrical battery pack assembly.
The plastic support bracket can include clearance notches or channels that allow nickel strips to pass over or between cell positions.
Correct clearance can help prevent interference during:
Nickel strip positioning
Spot welding
Busbar installation
Electrical connection
Inspection
The exact clearance dimensions should be designed around the selected nickel strip thickness and welding configuration.
Cable Routing Features
Some Custom Support Brackets include cable routing channels.
These channels can help organize:
Sensor wires
Balance leads
Temperature sensor cables
Power cables
Communication wires
Cable routing features should avoid sharp edges and excessive bending.
For battery applications, wires should also be kept away from areas where they could experience:
Abrasion
Excessive heat
Welding sparks
Compression
Mechanical movement
Flame Retardant Support Brackets
Where higher fire resistance is required, a flame-retardant material may be selected.
A common specification is UL 94 V-0, when the selected material and finished component have been evaluated to the applicable testing requirements.
However, UL 94 performance should not be assumed solely from the material name.
The actual rating depends on:
Material formulation
Material thickness
Test specimen
Manufacturing conditions
Applicable certification
Therefore, buyers should request the appropriate technical documentation when UL 94 V-0 performance is a requirement.
Temperature Resistance
Temperature resistance is an important factor for battery support brackets.
During operation, battery cells may experience elevated temperatures.
The selected plastic should maintain adequate:
Dimensional stability
Mechanical strength
Insulation properties
Structural integrity
at the expected operating temperature.
Typical material guidance may include:
| Material | General Temperature Consideration |
|---|---|
| ABS | Moderate temperature applications |
| PC | Higher temperature applications than standard ABS |
| PP | Moderate temperature applications |
| PA66 | Higher temperature applications |
The values used for a particular product should always be verified through the relevant material datasheet.
Why Lightweight Plastic Support Brackets Are Used in Battery Packs
A battery pack requires more than electrical connections.
It also requires mechanical organization.
A lightweight plastic support bracket can provide a simple way to organize cylindrical cells without adding unnecessary metal weight.
Common benefits include:
Plastic generally has a lower density than aluminum or steel.
Engineering plastics can provide useful electrical isolation.
Injection molding allows complex geometries.
Cell positioning can make assembly easier.
The bracket can be designed around different cell counts and pack configurations.
For high-volume production, injection molding can provide competitive unit costs after tooling is established.
Common Applications
Lightweight plastic support brackets can be used in many applications.
Battery packs for portable and industrial equipment can use cylindrical cell holders.
Small and medium energy storage assemblies may use plastic cell positioning structures.
Higher-performance battery systems may require flame-retardant engineering plastics and more advanced mechanical designs.
Cordless power tools commonly use compact cylindrical battery packs.
Portable electronic devices may use lightweight battery positioning components.
Battery support structures can help organize rechargeable cells inside backup power equipment.
Design Considerations for Battery Cell Holders
A good support bracket design should consider the entire battery assembly.
The positioning opening must correspond to the actual cell diameter.
The bracket should accommodate the cell length and end geometry.
Spacing must support electrical and mechanical requirements.
The design should provide enough space for Nickel Strip Welding.
The holder should work together with other insulation components.
Airflow channels should be considered where necessary.
The design should allow efficient insertion and removal of cells.
Customization Options
A custom lightweight plastic support bracket can be modified for different battery pack requirements.
Potential customization includes:
Cell hole diameter
Cell spacing
Number of cell positions
Overall dimensions
Mounting holes
Ventilation slots
Cable routing channels
Nickel strip clearance
Identification markings
Cell numbering
Snap-fit structures
Screw mounting points
Reinforcing ribs
Upper and lower matching structures
Custom tooling may be required for non-standard designs.
Color Options
Black is one of the most common colors for battery support brackets.
Other colors can be produced depending on the material and application.
Potential colors include:
Black
White
Gray
Red
Blue
Green
Yellow
Custom colors
Color selection may be used for:
Product identification
Assembly orientation
Electrical system differentiation
Visual inspection
Customer branding requirements
Colorants should be compatible with the selected plastic resin.
Environmental Compliance
For electrical and electronic applications, environmental compliance can be an important purchasing requirement.
A support bracket may be specified as RoHS compliant when the material and product meet the applicable requirements.
Depending on the application and destination market, buyers may also request documentation relating to:
Material composition
RoHS
REACH
Flame retardancy
Material safety
Technical data
Quality inspection
Compliance requirements should be confirmed according to the intended market and application.
Quality Control for Plastic Support Brackets
Quality inspection helps ensure that the support bracket meets dimensional and functional requirements.
Typical inspection items include:
| Inspection Item | Purpose |
|---|---|
| Hole Diameter | Verify cell fit |
| Cell Spacing | Confirm positioning accuracy |
| Overall Dimensions | Confirm assembly compatibility |
| Wall Thickness | Check structural consistency |
| Surface Quality | Detect molding defects |
| Flash | Ensure clean edges |
| Warpage | Maintain dimensional accuracy |
| Material | Confirm specified resin |
| Color | Maintain appearance consistency |
| Flame Rating | Verify required material performance |
| Assembly Fit | Confirm compatibility with mating components |
Common Injection Molding Defects
Plastic support brackets can experience common molding defects if the process is not properly controlled.
Potential defects include:
Short shots
Flash
Warpage
Sink marks
Weld lines
Flow marks
Burn marks
Dimensional variation
Ejection marks
For precision battery holders, dimensional control is particularly important because even small variations can influence cell positioning.
Purchasing and Quotation Guide
When purchasing a lightweight plastic support bracket, buyers should provide as much technical information as possible.
For example:
18650 cylindrical battery cell
The exact cell dimensions should be confirmed with the battery supplier.
For example:
4 parallel × 5 series
or another required configuration.
A typical design may use approximately 19 mm spacing.
A typical 18650 holder design may use an approximately 18.5 mm positioning hole.
Common options include:
ABS
Flame-retardant ABS
PC
PP
PA66
If required, specify the desired flame-retardant classification and request appropriate documentation.
Provide the expected operating temperature range.
Specify whether the project requires:
Upper holder
Lower holder
Upper and lower matched holders
Single-sided holder
Examples include:
Ventilation slots
Cable channels
Nickel strip clearance
Cell numbering
Mounting holes
Snap-fit structures
Custom Mold Development
For large-volume projects, a custom injection mold can be developed specifically for the support bracket.
The general process includes:
Requirement confirmation
Product drawing
3D design
Design review
Mold flow analysis when necessary
Mold design
Tool manufacturing
Trial molding
Sample inspection
Design adjustment
Mass production
The tooling cost depends on:
Product complexity
Number of cavities
Mold steel
Expected production volume
Mold life requirements
Dimensional tolerances
Advantages of Lightweight Plastic Support Brackets
The main advantages can be summarized as follows:
Plastic reduces the mass of the positioning system.
Plastic materials can help isolate neighboring components.
Injection molding supports complex structural features.
Cell positioning can simplify battery pack assembly.
High-volume injection molding can provide economical production.
The bracket can be adapted to specific battery layouts.
Plastic does not corrode in the same manner as conventional metal brackets.
Limitations
A lightweight plastic support bracket also has limitations.
Not every plastic is suitable for high-temperature environments.
Plastic generally has different load-bearing characteristics from structural metals.
Long-term exposure to heat, chemicals, ultraviolet radiation, or mechanical stress may affect performance.
Some plastics may experience thermal expansion or moisture-related dimensional changes.
Standard plastic should not automatically be assumed to have a flame-retardant rating.
Therefore, material selection must be based on actual operating conditions.
Lightweight Plastic Support Bracket vs. Metal Bracket
| Feature | Plastic Support Bracket | Metal Support Bracket |
|---|---|---|
| Weight | Low | Higher |
| Electrical Insulation | Generally excellent | Requires insulation |
| Corrosion Resistance | Generally good | Depends on metal and coating |
| Design Flexibility | High | Moderate to high |
| Injection Molding | Suitable | Not applicable |
| Complex Shapes | Easy to integrate | May require multiple processes |
| Thermal Conductivity | Generally low | Generally higher |
| Mechanical Strength | Application dependent | Generally higher |
| Cost at High Volume | Potentially economical | Depends on fabrication method |
Neither material is universally better. The correct selection depends on the application.
Role in Battery Pack Safety
A battery support bracket can contribute to mechanical organization and insulation, but it should not be considered a complete battery safety system.
Battery pack safety also depends on:
Cell selection
Battery management system
Electrical protection
Fuse design
Insulation
Thermal management
Enclosure design
Welding quality
Mechanical protection
Charging system
Manufacturing controls
The support bracket is one component within the overall system.
Installation and Assembly Considerations
During assembly, operators should avoid forcing cells into undersized holes.
The cell surface should not be scratched or damaged.
The bracket should be checked for:
Cracks
Flash
Warpage
Missing sections
Dimensional defects
Before final assembly, the fit between the bracket and cells should be verified.
For upper and lower holders, both components should be aligned correctly before the pack is secured.
Storage and Handling
Plastic support brackets should be stored in a clean, dry environment.
Recommended handling practices include:
Avoid excessive stacking pressure
Keep components away from high temperatures
Prevent contamination
Protect molded edges
Avoid unnecessary deformation
Keep packaging intact until assembly
For sensitive engineering plastics, storage conditions should follow the material supplier's recommendations.
Frequently Asked Questions
It is a molded plastic component used to position, support, separate, or insulate components in electrical, electronic, battery, and industrial assemblies.
ABS is one of the most common choices, while PC, PP, and PA66 may be selected for specific performance requirements.
It is a plastic positioning structure designed to arrange cylindrical 18650 battery cells in a straight-line configuration.
An application may specify approximately 18.5 mm, but the actual dimension should be matched to the selected battery cell.
A common design specification is approximately 19 mm, although the required spacing depends on the battery pack design.
Yes. Customization can include hole diameter, cell spacing, cell quantity, ventilation slots, cable channels, nickel strip clearance, mounting structures, and identification features.
Yes. Flame-retardant ABS grades are available. The required rating should be confirmed from the applicable material documentation.
No. A plastic support bracket primarily provides positioning and assembly support, while a structural end plate is designed for structural reinforcement, compression, or load-bearing functions.
Plastic can provide electrical insulation, but the complete battery insulation system should include all required insulation components and appropriate electrical clearances.
Black is commonly used, but other colors can be manufactured depending on material availability and customer requirements.
Conclusion
A Lightweight Plastic Support Bracket is a practical component for battery packs, electrical systems, electronic equipment, and industrial assemblies where positioning, insulation, assembly efficiency, and weight reduction are important.
For cylindrical battery applications, an 18650 straight-line support bracket can maintain approximately 19 mm cell spacing and approximately 18.5 mm positioning holes, depending on the specific design. ABS is commonly used because it offers a useful balance of rigidity, impact resistance, processability, and cost. PC, PP, and PA66 provide alternative options for different operating conditions.
A well-designed support bracket can incorporate ventilation openings, cable routing channels, nickel strip clearance areas, reinforcing ribs, mounting points, and other functional structures. Custom injection molding makes it possible to create brackets for different battery configurations and equipment designs.
However, a lightweight plastic support bracket should not be confused with a structural end plate. The support bracket primarily performs positioning, spacing, insulation, and assembly functions, while structural plates are intended to provide mechanical reinforcement and load-bearing capability.
For procurement, the most important parameters include cell model, cell spacing, positioning hole diameter, cell arrangement, material, flame-retardant requirements, temperature range, assembly configuration, color, environmental compliance, and customization requirements. Clearly defining these specifications can help ensure that the final support bracket is compatible with the intended battery or electrical system.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
