Epoxy Sheet for Industrial Insulation is a rigid electrical insulation material widely used in power equipment, electrical cabinets, switchgear, transformers, motors, generators, battery systems, industrial machinery, testing fixtures, and other applications where reliable insulation must be combined with mechanical strength and dimensional stability.

Industrial epoxy sheets are commonly manufactured from glass fiber cloth impregnated with epoxy resin, followed by hot pressing and curing. Depending on the material grade, production process, resin system, glass fabric construction, and applicable standards, epoxy sheets can provide a useful combination of electrical insulation, mechanical rigidity, heat resistance, flame retardancy, moisture resistance, and machinability.

Among the most recognized grades are FR-4, G10, and 3240 epoxy sheet. FR-4 is commonly selected when flame-retardant performance and consistent electrical and mechanical properties are important. G10 belongs to the glass-fiber reinforced epoxy laminate family and is widely used for rigid electrical insulation. 3240 is a traditional industrial epoxy glass laminate grade commonly used in electrical insulation and mechanical support applications.

Unlike thin flexible insulation films, an industrial epoxy sheet is primarily designed to provide rigid insulation and structural support. This distinction makes epoxy sheet particularly useful where an insulating material must also maintain its shape, support components, separate conductive parts, or withstand mechanical loads.

In industrial electrical systems, insulation is not limited to preventing direct electrical contact. The insulating material may also need to maintain adequate clearance, provide a stable mounting surface, resist heat, withstand vibration, tolerate moisture, and remain dimensionally stable during long-term operation. For these reasons, selecting the appropriate epoxy sheet grade and thickness is an important part of industrial equipment design.

1. What Is an Epoxy Sheet?

An epoxy sheet is a rigid composite laminate produced by combining reinforcing material, typically E-glass fiber cloth, with an epoxy resin system. The impregnated layers are stacked and consolidated under controlled pressure and temperature to form a dense, mechanically stable sheet.

The glass fiber reinforcement provides mechanical strength and dimensional stability, while the cured epoxy resin provides electrical insulation, bonding between reinforcement layers, chemical resistance, and thermal stability.

The resulting laminate can be supplied in large sheets and then cut, drilled, routed, milled, chamfered, countersunk, or otherwise machined into finished insulating components.

Basic Epoxy Sheet Construction

The exact properties of an epoxy sheet depend on the resin formulation, glass fabric architecture, curing conditions, thickness, manufacturing process, and material grade.

For industrial insulation, the sheet should therefore be selected according to the actual operating environment rather than by thickness alone.

2. Why Epoxy Sheet Is Used for Industrial Insulation

Industrial electrical equipment frequently contains conductors, busbars, terminals, circuit boards, metal structures, connectors, and other electrically active components. These components must be physically separated and electrically isolated.

A thin flexible film may provide excellent surface insulation, but it may not have enough rigidity to act as a structural separator. An insulation paper may be economical and flexible, but it may not provide the required mechanical support.

Epoxy sheet fills this gap by combining electrical insulation with structural rigidity.

Typical reasons for selecting epoxy sheet include:

• High electrical insulation capability

• High mechanical rigidity

• Good dimensional stability

• Low moisture absorption compared with many conventional Insulating Materials

• Useful temperature resistance

• Good flame-retardant options

• Resistance to many industrial chemicals

• Good machining characteristics

• Ability to produce custom-shaped insulating components

• Long-term structural stability

• Suitability for high-voltage electrical equipment

• Suitability for battery module structures

• Compatibility with mechanical fastening

• Ability to function as both an insulator and support plate

The material is especially useful when the insulation must remain in a fixed position throughout the service life of the equipment.

3. FR-4 Epoxy Sheet for Industrial Insulation

FR-4 epoxy sheet is one of the most widely recognized glass-fiber reinforced epoxy laminate materials.

FR-4 generally refers to a flame-retardant grade of glass-reinforced epoxy laminate. It is widely associated with printed circuit board materials, but industrial FR-4 sheets are also used as standalone electrical insulation and structural components.

FR-4 epoxy sheet can be used for:

• Electrical insulation plates

• Switchgear barriers

• Busbar insulation supports

• Transformer insulation components

• Motor insulation components

• Generator insulation components

• Electrical cabinet barriers

• Power electronics supports

• Battery module insulation

• Battery pack separators

• Industrial fixture plates

• Testing equipment bases

• Mechanical electrical supports

The exact performance of an FR-4 sheet should always be verified from the material manufacturer's technical data because different grades may have different thermal, electrical, mechanical, and flame-retardant properties.

4. FR-4 vs 3240 Epoxy Sheet

When purchasing industrial epoxy sheet, one of the most important decisions is selecting the correct material grade.

Material Grade Comparison

The designation alone should not be used as the only purchasing criterion. The required properties should be confirmed against the actual technical data sheet, test method, thickness, and intended application.

5. Epoxy Sheet vs Flexible Insulation Materials

Industrial insulation materials are not interchangeable simply because they are all electrically insulating.

Epoxy sheet is generally selected for rigid insulation, while materials such as PC films, Nomex aramid paper, and insulation paper are commonly used for thinner, flexible, or cushioning applications.

This comparison demonstrates why material selection should be based on application requirements rather than simply choosing the thinnest or least expensive insulation material.

6. Industrial Applications of Epoxy Sheet

Epoxy sheets are used across a broad range of industrial sectors.

Common application areas include:

1. Switchgear insulation

2. Electrical cabinet insulation

3. Busbar insulation

4. Transformer insulation

5. Motor insulation

6. Generator insulation

7. Power electronics insulation

8. Battery module insulation

9. Battery pack insulation

10. Energy storage equipment

11. Industrial machinery

12. Electrical testing fixtures

13. Manufacturing tooling

14. PCB support structures

15. Terminal insulation

16. Relay insulation

17. Contactor insulation

18. Inverter insulation

19. Converter insulation

20. High-voltage equipment insulation

The material may be supplied as a flat sheet or converted into a finished component according to a technical drawing.

7. Epoxy Sheet for Switchgear Insulation

Switchgear contains conductive components that require controlled electrical separation. Rigid epoxy sheets can be used as barriers, supports, liners, partitions, and insulating plates.

Typical applications include:

• Busbar barriers

• Phase separators

• Terminal supports

• Insulating partitions

• Mounting plates

• Electrical cabinet liners

• Cable support structures

• Component isolation plates

The rigidity of epoxy sheet makes it suitable for applications where the insulation must maintain a fixed geometry.

For switchgear, the material should be evaluated for electrical strength, creepage and clearance requirements, temperature, flame behavior, mechanical loading, and environmental conditions.

8. Epoxy Sheet for Busbar Insulation

Busbars carry relatively high electrical currents and may operate at elevated temperatures. Insulating supports and barriers around busbars must maintain adequate mechanical and electrical separation.

Epoxy sheet can be machined into:

• Busbar support plates

• Busbar separators

• Phase barriers

• Insulation bases

• Mounting supports

• Terminal barriers

• Electrical partition plates

The sheet thickness should be selected according to the mechanical structure and electrical design.

For high-voltage applications, insulation thickness alone does not determine safety. The complete design should consider electrical clearance, creepage distance, surface contamination, voltage level, transient conditions, temperature, and environmental exposure.

9. Epoxy Sheet for Transformer Insulation

Transformers contain windings, conductive components, cores, terminals, and structural elements that require electrical separation.

Epoxy laminate sheets can be machined into:

• Insulating spacers

• Support plates

• Barrier plates

• Terminal supports

• Structural insulation components

• Mounting components

• Electrical separators

The material grade should be selected according to the transformer's operating temperature, electrical requirements, mechanical loading, and manufacturing process.

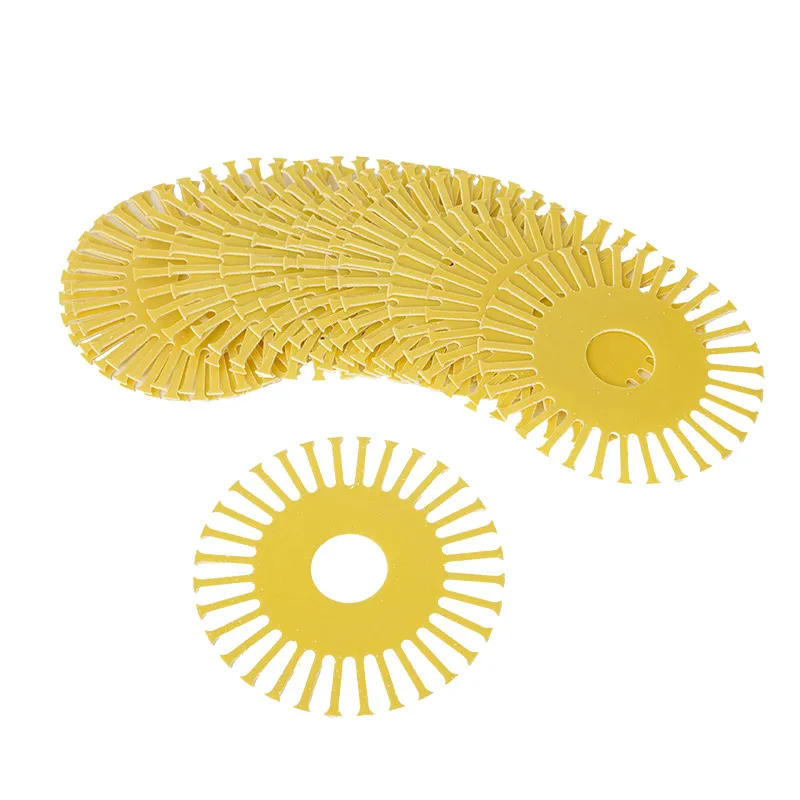

10. Epoxy Sheet for Motor and Generator Insulation

Electric motors and generators may experience vibration, heat, mechanical stress, and electrical loading during continuous operation.

Rigid epoxy laminate can provide support and electrical isolation for components that cannot rely on thin flexible films alone.

Potential applications include:

• Insulating support plates

• Terminal insulation

• Mounting components

• Electrical barriers

• Spacer components

• Structural insulating parts

• Testing and assembly fixtures

Because rotating electrical equipment can generate vibration, dimensional stability and mechanical strength are important considerations.

11. Epoxy Sheet for High Voltage Insulation

High-voltage equipment requires carefully designed insulation systems. Epoxy sheet can function as a rigid insulating barrier or structural component in high-voltage equipment.

Important design factors include:

• Operating voltage

• Peak voltage

• Transient voltage

• Electrical clearance

• Creepage distance

• Dielectric strength

• Surface condition

• Moisture exposure

• Temperature

• Mechanical loading

• Contamination

• Flame-retardant requirements

An epoxy sheet should not be considered a complete high-voltage protection system by itself. The finished electrical assembly must be designed and tested according to applicable requirements.

12. Epoxy Sheet for Lithium Battery Modules

Epoxy sheet has become useful in lithium battery module and battery pack structures where rigid electrical insulation is required.

Typical applications include:

Module End Plate Insulation Liner

FR-4 sheets may be positioned between metal end plates and battery cells or cell tabs. They provide electrical isolation while maintaining a rigid geometry.

Busbar Insulation Base

FR-4 sheets can be used beneath busbars or sampling structures as rigid insulation supports.

Module Separator

Rigid epoxy sheets can separate structural or electrical components inside a battery module.

Battery Pack Support

Epoxy laminate can serve as a structural insulating support where both mechanical rigidity and electrical insulation are required.

13. Epoxy Sheet for Battery Testing Fixtures

Battery manufacturing lines frequently use testing fixtures, probe boards, positioning fixtures, and tooling plates.

Epoxy sheet can be machined into precise shapes for these applications.

Typical examples include:

• Formation testing fixture plates

• Probe board bases

• Cell positioning plates

• Module assembly fixtures

• Inspection fixtures

• Electrical testing supports

• Production tooling boards

These parts are generally not part of the battery itself but are important components of the battery manufacturing process.

14. Key Specifications of Industrial Epoxy Sheet

The correct specification depends on the application.

These values are general selection references rather than universal specifications.

15. Match Epoxy Sheet Thickness to the Application

Thickness should be selected according to both electrical and mechanical requirements.

Typical Thickness Recommendations

These ranges are typical industry references and should not replace engineering calculations.

A thicker sheet generally provides greater mechanical rigidity, but simply increasing thickness does not automatically solve every insulation problem. The final design must also consider electrical geometry, thermal behavior, mechanical loading, and installation conditions.

16. Purchasing Point One: Specify the Material Grade

One of the most important purchasing requirements is to clearly specify the material grade.

The buyer should state whether the application requires:

FR-4 epoxy sheet with UL 94 V-0 flame retardancy

or

standard 3240 epoxy sheet.

This distinction can affect flame performance, electrical characteristics, mechanical properties, regulatory requirements, and application suitability.

Recommended RFQ Information

A vague description such as "epoxy insulation board" may lead to multiple possible materials. A detailed specification reduces the risk of receiving a material that does not meet the application requirements.

17. Purchasing Point Two: Match Thickness to the Application

Thickness should be matched to the actual application rather than selected only according to price.

Module End Plate Insulation Liners

For battery module end plate insulation liners, 1.5–3 mm is a common reference range.

The final thickness depends on:

• Required rigidity

• Available space

• Electrical separation

• Mechanical pressure

• Assembly method

• Operating temperature

• Module construction

Sampling Board Insulation Bases

For BMS sampling boards and similar structures, 1–2 mm may be suitable when the sheet functions mainly as a rigid insulating base.

Testing Fixtures and Tooling Boards

Testing fixtures and production tooling commonly use 3–10 mm sheets because these components may need additional rigidity and machining stability.

18. Purchasing Point Three: Request Relevant Certifications

Industrial electrical insulation should be supported by appropriate technical documentation.

Depending on the application, buyers may request:

• Flame-retardancy test reports

• UL documentation

• RoHS compliance documentation

• Material technical data sheets

• Electrical property reports

• Mechanical property reports

• Thermal performance data

• Moisture absorption data

• Dimensional data

• Batch quality documentation

For the requirements described in this application, buyers may specifically request SGS flame-retardancy test reports and RoHS compliance documentation.

For automotive-grade, energy-storage, and other demanding applications, relevant certification and test documentation should be carefully verified.

A certification should correspond to the actual material grade and applicable thickness rather than being treated as a generic statement covering every possible product variation.

19. Purchasing Point Four: Machining Services

Industrial epoxy sheet is often converted into finished components rather than used as a simple rectangular sheet.

Common machining processes include:

• CNC cutting

• CNC routing

• Drilling

• Milling

• Chamfering

• Countersinking

• Slotting

• Hole machining

• Profile cutting

• Edge finishing

Providing a DXF or DWG drawing can make the purchasing process more precise.

A drawing can specify:

• Overall dimensions

• Hole positions

• Hole diameter

• Slot dimensions

• Corner radius

• Chamfer size

• Countersink dimensions

• Tolerance requirements

• Material thickness

• Surface requirements

Pre-machined epoxy sheet components can reduce the need for manual processing and provide cleaner, more consistent edges.

20. Purchasing Point Five: Surface Requirements

The surface finish should be selected according to the final application.

For electrical insulation liners, a smooth surface is commonly preferred.

A smooth surface can be beneficial for:

• Electrical insulation

• Easy cleaning

• Consistent assembly

• Controlled contact surfaces

• Appearance

• Dimensional consistency

When an epoxy sheet component needs to be bonded using an adhesive, a lightly sanded or textured surface may be considered.

A controlled surface texture can increase the available bonding area and may improve adhesive wetting and mechanical adhesion.

However, surface treatment should be validated with the selected adhesive because excessive roughness, contamination, dust, or damage to the laminate can negatively affect bonding or insulation performance.

21. CNC Machining of Epoxy Sheet

CNC machining is commonly used when epoxy sheet must be converted into complex industrial components.

Typical CNC operations include:

• Profile cutting

• Drilling

• Slotting

• Routing

• Chamfering

• Countersinking

• Pocket machining

• Hole arrays

• Custom contour machining

The glass fiber reinforcement makes epoxy laminate mechanically strong, but it also influences machining behavior.

Machining parameters should therefore be selected appropriately to minimize:

• Edge chipping

• Delamination

• Excessive dust

• Burrs

• Surface damage

• Dimensional deviation

For production parts, a controlled machining process is generally preferable to manual cutting.

22. Dimensional Stability of Epoxy Sheet

Dimensional stability is an important property for industrial insulation.

Electrical equipment can experience temperature changes, vibration, pressure, and mechanical stress. An insulating component that changes shape excessively may interfere with assembly or electrical clearances.

Glass fiber reinforcement helps maintain the geometry of epoxy laminate.

This makes epoxy sheet useful for:

• Precision insulating spacers

• Structural separators

• Mounting plates

• Electrical barriers

• Battery module liners

• Testing fixture bases

However, dimensional stability varies with grade, thickness, temperature, humidity, and manufacturing conditions.

23. Moisture Resistance

Moisture can affect electrical insulation systems and dimensional stability.

Epoxy glass laminates generally provide relatively low moisture absorption compared with many porous insulating materials.

For industrial applications exposed to humidity, the buyer should consider:

• Water absorption

• Environmental temperature

• Humidity

• Condensation

• Surface contamination

• Long-term insulation resistance

Low moisture absorption can help maintain more stable dimensions and electrical properties.

Nevertheless, the complete equipment enclosure and sealing design remain important for environmental protection.

24. Thermal Performance

Industrial epoxy sheet may be exposed to heat generated by:

• Electrical current

• Busbars

• Motors

• Transformers

• Power electronics

• Battery cells

• Industrial machinery

The applicable temperature limit depends on the exact material grade.

Typical industrial references may place continuous-use temperatures for certain FR-4 grades in the approximate 130–155°C range, while short-term exposure may reach higher temperatures depending on the grade.

These figures should not be treated as universal specifications.

When selecting material for high-temperature applications, buyers should request the actual technical data for the specified grade and thickness.

25. Flame Retardancy

Flame performance can be critical in electrical equipment.

A flame-retardant epoxy laminate may help reduce the propagation of flame under specified test conditions.

For applications where flame-retardant performance is required, buyers may specify:

UL 94 V-0

and request appropriate supporting documentation.

However, a flame-retardant rating does not mean that the material is completely fireproof under every operating condition.

The complete electrical system should still be designed with appropriate thermal management, current protection, spacing, enclosure design, and fire-safety considerations.

26. Dielectric Strength

Dielectric strength describes the electric field strength that a material can withstand under a specified test method before electrical breakdown occurs.

For epoxy glass laminate, dielectric performance depends on:

• Resin system

• Glass fiber construction

• Thickness

• Moisture

• Temperature

• Surface condition

• Test method

• Material grade

Some industrial epoxy laminates may have dielectric strength values in the range of approximately 20–35 kV/mm, but the actual certified value should always be obtained from the technical data for the selected material.

Dielectric strength should not be used alone to determine the required insulation thickness.

27. Mechanical Strength

One of the major advantages of epoxy glass sheet over thin insulation films is its mechanical strength.

The material can provide:

• Flexural strength

• Compressive strength

• Tensile strength

• Impact resistance

• Rigidity

• Dimensional stability

This makes it useful as both an insulating and structural component.

For example, a rigid epoxy sheet can separate a busbar from a metal structure while simultaneously supporting the geometry of the assembly.

28. High Rigidity for Structural Insulation

The rigid nature of epoxy sheet distinguishes it from flexible insulation films.

A rigid epoxy sheet can function as:

• Support plate

• Separator

• Barrier

• Liner

• Base

• Mounting plate

• Spacer

• Structural insulator

This is particularly useful where the insulation must resist compression or maintain a predetermined distance between components.

29. Epoxy Sheet for Electrical Cabinets

Electrical cabinets contain numerous conductive and metallic components.

Epoxy sheets may be used as:

• Internal barriers

• Component support plates

• Terminal insulation

• Busbar separators

• Mounting insulation

• Electrical partition plates

• Protective liners

The material can be machined to match the cabinet structure.

Custom holes and mounting slots can be incorporated into the sheet, reducing assembly time.

30. Epoxy Sheet for Power Electronics

Power electronic equipment often combines electrical current, heat generation, compact packaging, and mechanical constraints.

Epoxy sheet may be used around:

• Inverters

• Converters

• Power modules

• Busbars

• Terminals

• Switching components

• Electrical supports

The appropriate material must be selected according to voltage, temperature, mechanical stress, and environmental requirements.

31. Epoxy Sheet for Energy Storage Systems

Energy storage systems may require multiple layers of electrical and structural protection.

Epoxy sheet can be considered for:

• Battery module separators

• Pack insulation

• Busbar insulation

• Electrical barriers

• Support plates

• BMS support structures

• Internal partitions

• Manufacturing fixtures

For energy storage applications, the material grade, flame behavior, thermal properties, and electrical insulation requirements should be specified clearly.

32. Epoxy Sheet for Automotive Electrical Systems

Automotive electrical systems may experience vibration, temperature cycling, humidity, mechanical impact, and demanding space constraints.

Epoxy sheet can be used for rigid insulating components in:

• Electric vehicle battery packs

• Battery modules

• Charging systems

• Power electronics

• Electrical control systems

• Motor systems

• High-voltage electrical assemblies

For automotive applications, buyers should request the documentation required by the relevant vehicle or system specification.

33. Industrial Epoxy Sheet and Custom Components

A major advantage of epoxy laminate is that it can be manufactured into custom components.

A typical custom component workflow includes:

1. Confirm material grade.

2. Confirm thickness.

3. Provide a technical drawing.

4. Review dimensions and tolerances.

5. Confirm surface requirements.

6. Confirm electrical requirements.

7. Confirm machining process.

8. Produce prototype parts.

9. Inspect dimensions.

10. Perform functional testing.

11. Proceed to production.

This approach is particularly useful when an insulating component has a complex shape.

34. Common Machined Epoxy Components

Industrial epoxy sheets can be converted into many different parts.

35. Epoxy Sheet Surface Finish Selection

Surface finish should be specified during purchasing.

Smooth Surface

A smooth surface is generally suitable for:

• Electrical insulation liners

• Barriers

• Separators

• Protective plates

• General industrial insulation

Lightly Textured Surface

A lightly textured surface may be useful when:

• Adhesive bonding is required

• Improved adhesive wetting is desired

• A specific bonding process has been validated

Surface requirements should be documented clearly to avoid inconsistent production results.

36. Storage and Handling

Epoxy sheets should be stored in conditions appropriate for the material.

Important considerations include:

• Keep sheets flat

• Avoid excessive humidity

• Prevent contamination

• Avoid unnecessary mechanical impact

• Protect machined edges

• Prevent warping during storage

• Maintain appropriate packaging

Machined epoxy components may require additional protection because drilled holes, narrow sections, and sharp corners can be more susceptible to mechanical damage.

37. Inspection of Epoxy Sheet

Quality inspection may include several categories.

Appearance Inspection

Check for:

• Cracks

• Delamination

• Excessive scratches

• Surface contamination

• Uneven surfaces

• Edge damage

Dimensional Inspection

Check:

• Length

• Width

• Thickness

• Hole diameter

• Hole position

• Profile dimensions

• Flatness

Electrical Inspection

Depending on the application:

• Dielectric strength

• Insulation resistance

• Electrical breakdown characteristics

Mechanical Inspection

Depending on the grade:

• Flexural strength

• Tensile strength

• Compressive strength

• Impact performance

38. Common Industrial Epoxy Sheet Selection Mistakes

Several purchasing mistakes can reduce the reliability of an insulation component.

Mistake 1: Specifying Only "Epoxy Board"

The term is too broad.

A buyer should specify grade, thickness, dimensions, surface, electrical requirements, flame performance, and application.

Mistake 2: Choosing Thickness Only by Price

A thinner sheet may be less expensive but may not provide sufficient rigidity or electrical separation.

Mistake 3: Ignoring Flame Requirements

If flame-retardant performance is required, the buyer should specify the required grade and request documentation.

Mistake 4: Ignoring Moisture

Applications exposed to humidity should consider moisture absorption and dimensional stability.

Mistake 5: Providing No Drawing for Machined Parts

Complex parts should be specified using accurate technical drawings.

Mistake 6: Assuming All FR-4 Sheets Are Identical

FR-4 is a broad material designation. Actual properties can vary among grades and manufacturers.

39. Recommended RFQ Specification Format

A clear RFQ can use the following format.

This format gives the supplier enough information to understand the intended product.

40. Example RFQ for Battery Module Insulation

A typical inquiry could specify:

Product: FR-4 Epoxy Insulation Sheet
Application: Lithium Battery Module End Plate Insulation
Material: Glass Fiber Reinforced Epoxy
Grade: FR-4
Flame Requirement: UL 94 V-0 where required
Thickness: 2 mm
Surface: Smooth
Color: Green
Machining: CNC profile cutting and drilling
Drawing: DXF or DWG
Compliance: RoHS documentation required
Testing: Relevant flame-retardancy documentation required
Quantity: According to production requirement

Such a specification is more useful than simply requesting "FR-4 insulation board."

41. Industrial Epoxy Sheet for Testing Fixtures

Testing fixtures require materials that are rigid, dimensionally stable, machinable, and electrically insulating.

Epoxy sheet is therefore frequently used for:

• Electrical test boards

• Probe fixtures

• Positioning plates

• Assembly fixtures

• Inspection fixtures

• Production tooling

• Calibration supports

For these applications, thickness may be higher than that used for thin electrical liners.

A fixture plate may commonly use 3–10 mm material depending on its size and mechanical loading.

42. Epoxy Sheet for Manufacturing Tooling

Industrial manufacturing often requires temporary or semi-permanent tooling components.

Epoxy laminate can be used because it combines:

• Rigidity

• Low electrical conductivity

• Machinability

• Dimensional stability

• Moderate heat resistance

• Reusability

Applications can include:

• Assembly jigs

• Positioning fixtures

• Drilling templates

• Inspection bases

• Electrical test fixtures

• Component support plates

43. Environmental Considerations

Industrial equipment may operate in different environments.

Important conditions include:

• Indoor dry environments

• Humid environments

• Outdoor electrical cabinets

• High-temperature areas

• Low-temperature areas

• Dusty production environments

• Chemical exposure

• Vibration environments

Material selection should consider the complete operating environment rather than only the nominal electrical voltage.

44. Chemical Resistance

Epoxy resin systems generally offer useful resistance to many industrial chemicals.

However, chemical resistance depends on:

• Chemical concentration

• Temperature

• Exposure duration

• Resin formulation

• Surface condition

If the epoxy sheet will be exposed to oils, solvents, cleaning agents, acids, alkalis, or other chemicals, compatibility should be verified before production use.

45. Why Material Documentation Matters

Technical documentation allows engineers and buyers to compare material performance.

A useful technical data sheet may contain:

• Material grade

• Thickness range

• Density

• Dielectric strength

• Flexural strength

• Tensile strength

• Water absorption

• Thermal performance

• Flame rating

• Electrical properties

• Mechanical properties

• Dimensional tolerances

For critical applications, the buyer should request documentation corresponding to the actual supplied grade.

46. Industrial Epoxy Sheet Quality Control

Quality control should cover both raw material and finished components.

Typical controls include:

1. Incoming material verification

2. Grade verification

3. Thickness measurement

4. Surface inspection

5. Dimensional inspection

6. Machining inspection

7. Electrical testing where required

8. Packaging inspection

9. Batch traceability where required

For custom components, dimensional inspection against the supplied drawing is particularly important.

47. Epoxy Sheet and Electrical Safety

Epoxy sheet is an insulation material, but the safety of an electrical assembly depends on the complete system.

Engineers should consider:

• Voltage

• Current

• Temperature

• Creepage

• Clearance

• Insulation thickness

• Mechanical movement

• Environmental contamination

• Moisture

• Flame performance

• Component tolerances

The insulating sheet should be treated as one part of a complete electrical safety design.

48. Choosing Between Epoxy Sheet and PC Mylar Sheet

The difference between rigid epoxy sheet and PC Mylar sheet is especially important in battery applications.

Epoxy sheet is typically thicker and rigid. It is suitable for structural insulation, rigid separators, busbar bases, and module end plate liners.

PC Mylar sheet is thinner and flexible. It is suitable for surface-conforming insulation, cell top insulation, tab insulation, and curved applications.

They are therefore complementary rather than directly interchangeable.

49. Epoxy Sheet for Industrial Insulation: Advantages

The main advantages of industrial epoxy sheet include:

High Rigidity

The rigid laminate can support components and maintain a stable shape.

Electrical Insulation

The material provides electrical separation between conductive components.

Dimensional Stability

Glass fiber reinforcement helps maintain component geometry.

Machinability

The material can be processed into custom shapes.

Flame-Retardant Options

Certain grades provide flame-retardant performance.

Moisture Resistance

The laminate generally has relatively low moisture absorption.

Mechanical Strength

The material can withstand mechanical loads better than many thin insulation films.

Versatility

It can be used in electrical, power, automotive, battery, energy storage, and industrial equipment.

50. Limitations of Epoxy Sheet

Epoxy sheet is not the best choice for every insulation application.

Potential limitations include:

• It is rigid rather than highly flexible.

• It may not conform easily to curved surfaces.

• Glass fiber reinforcement can generate machining dust.

• It may require specialized cutting tools.

• Different grades have different thermal properties.

• It should not be selected solely by nominal grade.

• Thin flexible films may be more suitable where space is limited.

• High-temperature applications may require specialized insulation materials.

Correct application selection is therefore essential.

51. Epoxy Sheet Selection Checklist

Before ordering, buyers can review the following checklist:

Material

• Is the material FR-4, G10, 3240, or another grade?

• Is glass fiber reinforcement specified?

• Is the epoxy resin system appropriate?

Electrical

• What voltage will the material experience?

• What dielectric performance is required?

• What creepage and clearance are required?

Thermal

• What is the continuous operating temperature?

• Are there short-term temperature peaks?

• Is flame retardancy required?

Mechanical

• Does the sheet need to support a load?

• Is high rigidity required?

• Will the component experience vibration?

Environmental

• Is moisture exposure expected?

• Are chemicals present?

• Is outdoor operation possible?

Manufacturing

• Is CNC machining required?

• Is a DXF or DWG drawing available?

• Are tight tolerances required?

Compliance

• Is UL documentation required?

• Is RoHS documentation required?

• Are application-specific certifications required?

52. Industrial Epoxy Sheet Application Summary

53. Frequently Asked Questions

What is an epoxy sheet used for?

Epoxy sheet is primarily used for rigid electrical insulation, structural insulation, barriers, separators, support plates, liners, spacers, and industrial tooling.

Is FR-4 an epoxy sheet?

FR-4 is a glass-fiber reinforced epoxy laminate grade commonly used for electrical insulation and circuit board applications. Industrial FR-4 sheets can also be machined into rigid insulating components.

What is the difference between FR-4 and 3240 epoxy sheet?

Both are glass-fiber reinforced epoxy laminate materials, but they represent different material classifications and may have different performance characteristics. The exact technical data should be checked for the selected grade.

What thickness is commonly used for battery modules?

For battery module insulation liners, 1.5–3 mm is a common reference range, although the actual requirement depends on the battery design.

What thickness is commonly used for testing fixtures?

Testing and tooling boards commonly use approximately 3–10 mm, depending on fixture dimensions and mechanical requirements.

Can epoxy sheet be CNC machined?

Yes. Industrial epoxy laminate can commonly be CNC routed, drilled, milled, cut, chamfered, and countersunk.

Can epoxy sheet be bonded?

Yes, epoxy laminate can be bonded using suitable adhesives. When bonding is required, surface preparation and adhesive compatibility should be verified.

Is epoxy sheet waterproof?

Epoxy laminate has relatively low water absorption, but it should not automatically be considered completely waterproof. The actual environmental performance depends on material grade and application conditions.

Is epoxy sheet suitable for high voltage?

Certain epoxy laminate grades are widely used in high-voltage electrical insulation systems. However, suitability must be evaluated according to the actual voltage, dielectric requirements, creepage, clearance, temperature, and applicable standards.

54. Industrial Epoxy Sheet Purchasing Guide

For industrial purchasing, the most effective approach is to define the product according to its actual engineering requirements.

Instead of asking for a generic "epoxy board," specify:

Material Grade + Thickness + Size + Electrical Requirement + Flame Requirement + Surface + Machining + Certification + Application

For example:

FR-4 Epoxy Sheet + 2 mm + Custom Size + Electrical Insulation + UL 94 V-0 + Smooth Surface + CNC Machining + RoHS Documentation + Battery Module Application

This type of specification can significantly reduce misunderstandings during quotation and production.

55. Final Selection Recommendations

When selecting Epoxy Sheet for Industrial Insulation, buyers should focus on the complete application rather than a single property.

First, specify the material grade. Clearly distinguish between FR-4 epoxy sheet with the required flame-retardant performance and standard 3240 epoxy sheet.

Second, match the thickness to the application. Module end plate liners commonly use approximately 1.5–3 mm, sampling board insulation bases commonly use 1–2 mm, and testing fixtures may use approximately 3–10 mm.

Third, request relevant certifications and test reports. SGS flame-retardancy documentation and RoHS compliance information may be appropriate, while automotive and energy-storage applications may require additional verification.

Fourth, consider machining services. DXF or DWG drawings can help define custom profiles, holes, slots, chamfers, and tolerances. CNC-machined components can simplify assembly and improve dimensional consistency.

Fifth, define the surface requirement. Smooth surfaces are generally suitable for insulating liners, while lightly textured surfaces may be considered for adhesive bonding applications.

Finally, remember that epoxy sheet is a rigid insulation and structural material, not a universal replacement for thin flexible insulation films. PC Mylar, Nomex aramid paper, barley paper, and epoxy laminate each occupy different positions in an insulation system.

Correct material selection requires consideration of electrical, mechanical, thermal, environmental, manufacturing, and regulatory requirements together.
