An Adhesive Cushion Sealing Gasket for Electronic Assembly is a flexible sealing and cushioning component designed to provide protection, positioning, sealing, insulation, and shock absorption within electronic products and assemblies. It is commonly manufactured from materials such as silicone foam, polyurethane foam, EPDM foam, PE foam, EVA foam, neoprene foam, acrylic foam, rubber, or other engineered cushioning materials. One or both sides may be coated with pressure-sensitive adhesive to simplify installation and improve attachment to housings, covers, panels, frames, displays, circuit boards, battery compartments, and other electronic components.

Electronic assemblies often contain delicate components that require controlled spacing and protection against vibration, dust, moisture, impact, and mechanical movement. A properly designed adhesive cushion Sealing Gasket can provide a compliant interface between two mating surfaces while maintaining a stable assembly structure.

Unlike a rigid mechanical fastener, an adhesive cushion sealing gasket combines sealing performance, cushioning, gap compensation, and adhesive attachment in a single component. This makes it particularly useful where space is limited and where traditional screws, clips, or rigid seals may be difficult to install.

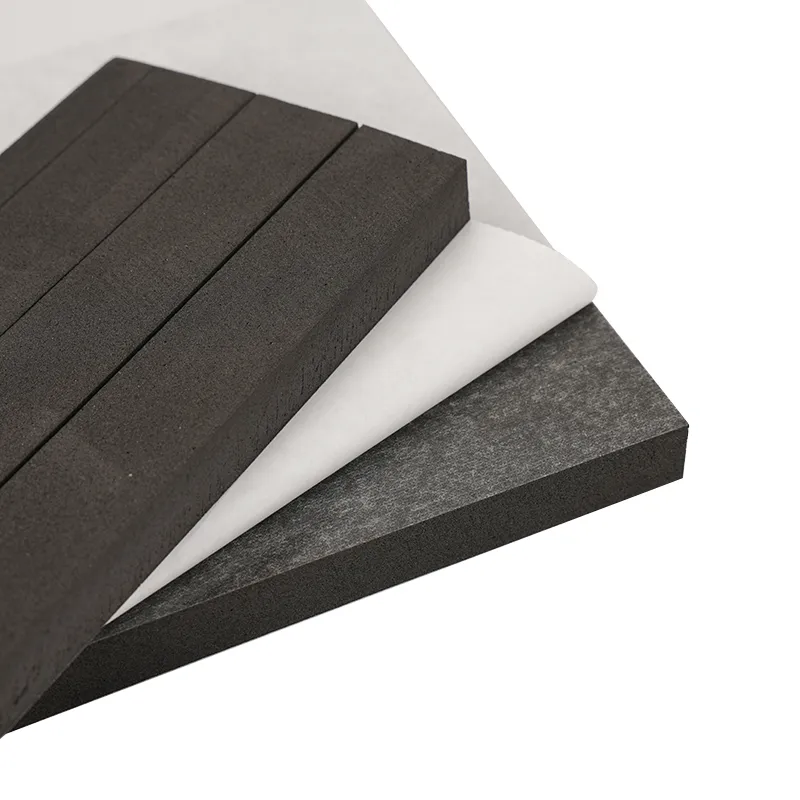

The gasket can be supplied in sheets, rolls, strips, die-cut pieces, custom shapes, rings, frames, washers, or other geometries. Custom die cutting allows the gasket to match the dimensions and contours of a specific electronic assembly.

2. What Is an Adhesive Cushion Sealing Gasket?

An adhesive cushion sealing gasket is a compressible sealing material with an adhesive layer designed to attach the gasket to a selected surface. The cushioning layer provides elasticity and resilience, while the adhesive layer maintains the gasket's position during assembly and operation.

The basic structure may include:

1. A cushioning or sealing substrate

2. A pressure-sensitive adhesive layer

3. A release liner

4. Optional surface treatment or protective coating

The cushioning substrate is selected according to the required compression, temperature resistance, environmental resistance, electrical insulation, and mechanical properties.

The adhesive system is selected according to the bonding surface and operating environment. Common adhesive technologies include acrylic adhesive, rubber-based adhesive, silicone adhesive, and modified adhesive systems.

The release liner protects the adhesive before installation and is removed immediately before application.

Typical Construction

3. Main Functions

An adhesive cushion sealing gasket can perform several functions simultaneously.

3.1 Sealing

The gasket creates a compliant interface between mating surfaces. When compressed, the material fills small surface irregularities and gaps, helping reduce the penetration of dust, moisture, air, and other contaminants.

The actual sealing performance depends on the gasket material, compression ratio, surface condition, joint geometry, adhesive properties, and environmental conditions.

3.2 Cushioning

The soft gasket layer absorbs mechanical energy and reduces direct contact between rigid components. This can help protect electronic assemblies from vibration, impact, and mechanical shock.

3.3 Gap Compensation

Manufacturing tolerances can produce small gaps between components. A compressible gasket can accommodate these dimensional differences and maintain contact.

3.4 Component Positioning

The adhesive backing allows the gasket to remain in the desired position before final assembly. This is particularly useful during automated or manual assembly.

3.5 Vibration Reduction

A resilient foam or rubber gasket can reduce the transmission of mechanical vibration between mating components.

3.6 Noise Reduction

In suitable applications, cushioning material can reduce rattling and mechanical contact noise caused by component movement.

3.7 Electrical Isolation

Certain nonconductive gasket materials can provide electrical separation between adjacent components. However, electrical insulation performance should be verified using the actual material specification rather than assumed solely from the gasket appearance.

4. Advantages of Adhesive Cushion Sealing Gaskets

Adhesive cushion sealing gaskets provide several advantages for electronic assembly applications.

4.1 Easy Installation

The pressure-sensitive adhesive allows the gasket to be applied directly to the target surface. This can simplify assembly and reduce the need for separate mechanical fastening.

4.2 Flexible Design

Gaskets can be produced in many shapes and sizes. Complex profiles can be achieved through die cutting, CNC cutting, slitting, laminating, or other converting processes.

4.3 Lightweight Construction

Foam-based gasket materials are generally lightweight. This can be beneficial in portable electronics, compact devices, battery systems, and other weight-sensitive applications.

4.4 Excellent Cushioning

Compressible materials help absorb mechanical loads and protect sensitive components.

4.5 Controlled Compression

Material thickness and density can be selected to provide a desired compression response.

4.6 Gap Filling

The gasket can accommodate small variations in assembly dimensions and compensate for uneven surfaces.

4.7 Clean Appearance

Custom die-cut adhesive gaskets can provide a neat appearance without exposed screws or mechanical fasteners.

4.8 Reduced Assembly Steps

A pre-applied adhesive layer can combine positioning and attachment into one component.

5. Common Materials

Material selection is one of the most important considerations when designing an adhesive cushion sealing gasket.

Silicone Foam

Silicone foam offers good flexibility, temperature resistance, aging resistance, and environmental stability. It is commonly considered for applications exposed to temperature changes or demanding environments.

Typical applications include:

• Electronic enclosures

• Display assemblies

• Automotive electronics

• LED equipment

• Battery systems

• Control equipment

Polyurethane Foam

Polyurethane foam provides good cushioning and compression characteristics. It is widely used for general electronic equipment where strong cushioning and gap compensation are required.

EPDM Foam

EPDM foam provides good resistance to weathering, ozone, moisture, and many environmental conditions. It can be suitable for outdoor electronic equipment and applications requiring environmental sealing.

EVA Foam

EVA foam is lightweight and economical. It is frequently used for cushioning, positioning, spacing, and general sealing applications.

PE Foam

Polyethylene foam provides lightweight cushioning and good moisture resistance. It is suitable for applications where low density and economical processing are important.

Neoprene Foam

Neoprene foam can provide a combination of cushioning, flexibility, environmental resistance, and sealing capability.

Material Comparison

6. Adhesive Types

The adhesive is equally important as the gasket substrate.

Acrylic Adhesive

Acrylic adhesives are widely used because of their aging resistance, environmental durability, and relatively stable long-term bonding performance.

They can be suitable for many plastics, metals, coated surfaces, and painted surfaces when the adhesive is correctly selected.

Silicone Adhesive

Silicone-based adhesive systems may be selected for applications involving high temperatures, silicone substrates, or demanding environmental conditions.

Rubber-Based Adhesive

Rubber-based adhesives can provide good initial tack and are often suitable for general-purpose applications.

However, the appropriate adhesive should be selected according to the substrate, temperature, humidity, surface energy, and required service life.

Adhesive Comparison

7. Common Specifications

The dimensions and performance requirements of an adhesive cushion sealing gasket vary according to the electronic assembly.

Actual specifications should always be confirmed against the selected material grade and production design.

8. Thickness Selection

Thickness directly affects compression, sealing capability, gap compensation, and installation performance.

A thin gasket may be appropriate when the assembly has tight dimensional tolerances and limited installation space.

A thicker gasket may be useful when the assembly contains larger gaps or requires greater cushioning.

However, increasing thickness does not automatically improve sealing performance. Excessive thickness may cause assembly interference, excessive compression, dimensional instability, or adhesive stress.

General Selection Principle

The gasket thickness should normally be selected according to:

• Minimum assembly gap

• Maximum assembly gap

• Required compression

• Available installation space

• Material compression characteristics

• Adhesive thickness

• Housing tolerance

• Operating temperature

9. Compression and Sealing Performance

Compression is one of the most important design factors.

When a gasket is compressed between two surfaces, the material produces a reaction force. This force helps maintain contact with the mating surfaces.

A gasket that is insufficiently compressed may fail to fill surface irregularities.

A gasket that is excessively compressed may experience:

• High assembly force

• Material deformation

• Adhesive stress

• Permanent compression set

• Reduced recovery

• Component distortion

Therefore, the compression range should be determined through material testing and actual assembly conditions.

10. Adhesive Bonding Performance

The adhesive side of the gasket must be compatible with the target surface.

Common bonding substrates include:

• ABS

• PC

• PP

• PA

• Aluminum

• Stainless steel

• Painted metal

• Glass

• Acrylic

• Coated surfaces

Surface preparation can significantly affect bonding performance.

Typical considerations include:

1. Surface cleanliness

2. Surface energy

3. Surface roughness

4. Temperature

5. Humidity

6. Contact pressure

7. Dwell time

8. Application speed

Dust, oil, grease, moisture, and release agents can reduce adhesive performance.

11. Surface Preparation

Proper surface preparation helps improve gasket adhesion.

Before installation, the bonding surface should generally be clean, dry, and free from loose contamination.

For some applications, an appropriate cleaning agent may be used. However, the cleaning method must be compatible with the substrate.

For low-surface-energy plastics such as some grades of PP and PE, additional surface treatment may be required.

Possible treatments include:

• Primer

• Plasma treatment

• Corona treatment

• Flame treatment

• Mechanical preparation

The appropriate method should be validated through testing.

12. Electronic Assembly Applications

Adhesive cushion sealing gaskets are used in many electronic products.

Consumer Electronics

Applications may include:

• Mobile devices

• Tablets

• Portable electronics

• Smart devices

• Handheld instruments

• Consumer control equipment

Industrial Electronics

Industrial applications may include:

• Control panels

• Industrial controllers

• Power supplies

• Instrumentation

• Sensors

• Communication equipment

Automotive Electronics

Possible applications include:

• Electronic control units

• Sensor housings

• Battery systems

• Display modules

• Lighting systems

• Control modules

Automotive applications require careful evaluation of temperature, vibration, humidity, chemicals, and long-term durability.

13. Battery Applications

Cushion sealing gaskets can also be used in battery-related assemblies.

Potential functions include:

• Cell cushioning

• Housing sealing

• Component spacing

• Insulation

• Vibration reduction

• Cover sealing

• Interface protection

For lithium battery applications, material selection should consider thermal exposure, electrical insulation, chemical compatibility, flame resistance, and dimensional stability.

The gasket should not be considered a substitute for a complete battery safety design.

14. PCB and Circuit Board Applications

Electronic circuit boards may require cushioning or positioning around housings and covers.

An adhesive gasket can be used to:

• Maintain component clearance

• Prevent housing contact

• Reduce vibration

• Provide insulation

• Reduce rattling

• Compensate for dimensional variation

Care must be taken to avoid placing excessive compression on sensitive components or solder joints.

15. Display and Touch Panel Applications

Display assemblies frequently require thin cushioning and sealing materials.

A gasket may help:

• Position display components

• Reduce mechanical shock

• Prevent dust ingress

• Reduce vibration

• Compensate for dimensional tolerances

• Provide separation between rigid surfaces

The material should be selected according to optical requirements, compression behavior, temperature, and adhesive compatibility.

16. Waterproofing and Dust Protection

A properly designed gasket can help reduce the penetration of environmental contaminants.

However, sealing performance depends on the complete enclosure design.

Important factors include:

• Gasket compression

• Joint width

• Surface flatness

• Housing rigidity

• Corner geometry

• Material recovery

• Adhesive durability

• Environmental exposure

A gasket alone cannot guarantee a particular IP rating. The complete assembled product must be tested to the applicable standard.

17. Vibration and Shock Protection

Electronic products can experience mechanical vibration during operation, transportation, or installation.

A Cushion Gasket can act as an interface between rigid components and reduce direct mechanical contact.

This is particularly useful for:

• Portable electronics

• Automotive electronics

• Industrial equipment

• Battery modules

• Sensors

• Communication equipment

The correct material hardness and compression characteristics should be selected according to the vibration profile.

18. Thermal Considerations

Temperature can influence both the gasket material and the adhesive.

At elevated temperatures, some materials may soften, deform, or lose mechanical strength.

At low temperatures, certain materials may become harder and less flexible.

Therefore, the operating temperature range should include:

• Normal operating temperature

• Maximum operating temperature

• Minimum operating temperature

• Storage temperature

• Short-term temperature peaks

Thermal cycling should also be considered where the equipment repeatedly changes temperature.

19. Environmental Resistance

Electronic assemblies may be exposed to:

• Humidity

• Water

• Dust

• UV radiation

• Ozone

• Salt spray

• Cleaning chemicals

• Oils

• Fuels

• Solvents

The gasket material and adhesive should be selected according to the actual exposure.

EPDM may be advantageous for weather and ozone resistance, while silicone may be selected for broad temperature stability. Other materials may be more suitable for specific chemical environments.

20. Electrical Insulation

Many cushion gasket materials are naturally electrically insulating.

Potential benefits include:

• Separation of conductive components

• Prevention of accidental contact

• Housing insulation

• Component isolation

• Protection of circuit boards

However, electrical insulation requirements should be evaluated based on:

• Dielectric strength

• Volume resistivity

• Surface resistivity

• Thickness

• Temperature

• Humidity

• Long-term aging

A material should not be described as electrically insulating for a specific voltage application without appropriate technical verification.

21. Flame Resistance

For certain electronic and electrical products, flame-retardant materials may be required.

Material selection may consider recognized flammability classifications such as UL 94.

Potential grades vary according to the material and thickness.

Flame-retardant performance should always be confirmed using the actual material grade and required thickness because a material's flammability classification may change with thickness.

22. Die Cutting and Custom Manufacturing

Custom die cutting is one of the most common manufacturing processes for adhesive cushion gaskets.

The process can produce:

• Rings

• Squares

• Rectangles

• Frames

• Irregular profiles

• Holes

• Slots

• Channels

• Multi-hole patterns

A digital drawing or technical specification can be used to define:

• Overall dimensions

• Inner dimensions

• Hole positions

• Corner radius

• Material thickness

• Adhesive side

• Liner configuration

Custom manufacturing allows the gasket to match the geometry of the electronic assembly.

23. Common Gasket Shapes

24. Single Sided and Double Sided Adhesive

Single Sided Adhesive

A single-sided adhesive gasket has adhesive on one surface.

It can be used when one side needs to be permanently attached while the opposite side contacts another component.

Double Sided Adhesive

A double-sided adhesive gasket has adhesive on both surfaces.

It can provide:

• Strong component attachment

• Positioning

• Cushioning

• Sealing

• Gap compensation

Double-sided adhesive should be selected carefully when disassembly is required because strong adhesive bonding can make component removal difficult.

25. Release Liner Options

The release liner protects the adhesive during storage and handling.

Common liner materials include:

• Paper

• PET film

• PE film

• Silicone-coated paper

• Silicone-coated PET

The liner should be easy to remove without damaging the gasket or adhesive layer.

For automated assembly, liner design can be especially important.

26. Automated Assembly

Adhesive cushion gaskets can be integrated into automated manufacturing processes.

Potential processes include:

• Pick and place

• Roll-to-roll converting

• Automatic dispensing

• Die-cut part feeding

• Robotic assembly

• Peel-and-stick application

For automated production, dimensional consistency and liner release performance become important.

The gasket should maintain consistent:

• Thickness

• Shape

• Adhesive exposure

• Die-cut accuracy

• Release force

27. Manual Installation

For manual installation, the operator generally removes the release liner and aligns the gasket with the target surface.

Recommended practices include:

1. Clean the bonding surface.

2. Confirm gasket orientation.

3. Remove the release liner carefully.

4. Avoid touching the adhesive unnecessarily.

5. Align the gasket accurately.

6. Apply uniform pressure.

7. Complete the assembly according to the required process.

Incorrect alignment can affect sealing and appearance.

28. Common Design Considerations

When designing an adhesive cushion sealing gasket, engineers should consider:

Material

Select a material with appropriate flexibility, compression, temperature resistance, and environmental durability.

Thickness

Match thickness to the available gap and required compression.

Adhesive

Select an adhesive compatible with the mating surface.

Shape

Avoid unnecessarily complex geometry when a simpler design can provide the same function.

Corner Radius

Sharp corners may increase stress concentration and can complicate die cutting.

Tolerance

Define realistic dimensional tolerances according to the manufacturing process.

Compression

Specify the required compression range.

Environmental Conditions

Consider temperature, moisture, chemicals, vibration, and UV exposure.

29. Common Problems and Solutions

30. Quality Control

Quality control is essential for reliable gasket performance.

Typical inspection items include:

• Length

• Width

• Thickness

• Shape

• Hole position

• Die-cut accuracy

• Adhesive coverage

• Adhesive contamination

• Surface condition

• Compression characteristics

• Material hardness

• Density

• Appearance

For specialized applications, additional tests may include:

• Peel adhesion

• Shear adhesion

• Compression set

• Tensile strength

• Elongation

• Dielectric strength

• Temperature aging

• Humidity aging

• Chemical resistance

• Flammability

31. Packaging and Storage

Adhesive gaskets should be stored under conditions appropriate for the adhesive and substrate.

General considerations include:

• Keep away from direct sunlight.

• Avoid excessive heat.

• Control humidity.

• Keep packaging sealed.

• Prevent contamination.

• Avoid unnecessary compression.

• Protect die-cut edges.

• Follow the material supplier's recommended storage conditions.

Long storage periods may affect adhesive tack, liner release, and material flexibility.

32. Packaging Forms

Common packaging formats include:

• Individual pieces

• Stacked sheets

• Rolls

• Continuous strips

• Kiss-cut sheets

• Reels

• Bags

• Trays

For high-volume automated assembly, reels or continuous rolls may be preferred.

For manual installation, individual die-cut pieces or sheets may be more convenient.

33. Adhesive Cushion Gasket vs Traditional Mechanical Fastening

Adhesive cushion gaskets can reduce dependence on screws, clips, and other mechanical fasteners.

Adhesive Gasket Advantages

• Lightweight

• Low profile

• Easy installation

• Flexible

• Provides cushioning

• Provides gap compensation

• Can provide sealing

• Can provide insulation

Mechanical Fastener Advantages

• High mechanical retention

• Easy inspection

• Suitable for structural loads

• Often easier to disassemble

The two approaches can also be combined in the same electronic assembly.

34. Adhesive Gasket vs Rigid Gasket

A rigid gasket may have limited ability to accommodate dimensional variation.

A foam or rubber cushion gasket can deform to match irregular surfaces.

35. Product Selection Guide

When selecting an adhesive cushion sealing gasket for electronic assembly, consider the following sequence.

Step 1: Define the Application

Determine whether the primary function is:

• Sealing

• Cushioning

• Insulation

• Positioning

• Vibration isolation

• Gap filling

• Component protection

Step 2: Measure the Joint

Determine:

• Length

• Width

• Gap

• Contact area

• Available space

Step 3: Select the Material

Consider:

• Temperature

• Compression

• Moisture

• Chemical exposure

• Aging

• Electrical requirements

Step 4: Select the Adhesive

Consider the substrate and required service life.

Step 5: Define the Shape

Create a drawing showing the required dimensions.

Step 6: Validate the Design

Test the gasket under actual assembly and environmental conditions.

36. Customization Options

A custom adhesive cushion sealing gasket can be produced according to application requirements.

Possible customization includes:

• Custom length

• Custom width

• Custom thickness

• Custom shape

• Custom adhesive

• Custom hardness

• Custom density

• Custom color

• Custom liner

• Custom die cutting

• Custom holes

• Custom slots

• Custom notches

• Custom packaging

For high-volume electronic products, customized gasket geometry can improve assembly efficiency and reduce material waste.

37. Applications by Industry

38. Engineering Checklist

Before finalizing an adhesive cushion sealing gasket, engineers can review the following checklist:

• Is the gasket material suitable for the operating temperature?

• Is the thickness compatible with the available gap?

• Is the compression range appropriate?

• Is the adhesive compatible with the bonding surface?

• Is the gasket resistant to expected environmental conditions?

• Is electrical insulation required?

• Is flame resistance required?

• Is the gasket exposed to chemicals?

• Will the assembly experience vibration?

• Is repeated temperature cycling expected?

• Is the gasket removable or permanent?

• Is the shape suitable for automated assembly?

• Are the dimensional tolerances realistic?

• Has the final assembly been tested?

39. Frequently Asked Questions

What is an adhesive cushion sealing gasket?

It is a flexible gasket with an adhesive backing designed to provide sealing, cushioning, positioning, insulation, and gap compensation in an assembly.

What materials are commonly used?

Common materials include silicone foam, polyurethane foam, EPDM foam, EVA foam, PE foam, neoprene foam, silicone rubber, and EPDM rubber.

Can the gasket be customized?

Yes. Custom gaskets can be die cut into specific shapes, dimensions, holes, slots, and profiles.

Can it be used for electronic products?

Yes. These gaskets are widely applicable to electronic housings, displays, circuit boards, control equipment, battery systems, sensors, and other assemblies.

Can it provide waterproofing?

It can contribute to environmental sealing, but actual waterproof performance depends on the complete enclosure design and should be verified through testing.

Is the gasket electrically insulating?

Many foam and rubber materials are electrically nonconductive, but the exact electrical properties should be confirmed from the selected material specification.

Can it withstand high temperatures?

Some materials, particularly silicone-based materials, offer good temperature resistance. The actual temperature range depends on the specific material and adhesive.

Can it reduce vibration?

Yes. Compressible cushioning materials can reduce mechanical contact and help isolate vibration.

Can it be supplied with double-sided adhesive?

Yes. Both single-sided and double-sided adhesive configurations are available depending on the application.

Is custom die cutting available?

Custom die cutting is commonly used to manufacture precise gasket shapes for electronic assemblies.

40. Conclusion

An Adhesive Cushion Sealing Gasket for Electronic Assembly is a multifunctional component that combines cushioning, sealing, positioning, insulation, gap compensation, and adhesive attachment in a compact design. Its flexibility makes it suitable for a wide range of electronic and electrical applications.

Successful gasket selection depends on more than simply choosing a thickness or material. Engineers should evaluate the complete combination of substrate, adhesive, compression, geometry, surface condition, temperature, humidity, vibration, chemicals, electrical requirements, and assembly method.

Silicone, PU, EPDM, EVA, PE, neoprene, and other materials each provide different performance characteristics. Acrylic, silicone, and rubber-based adhesive systems also have different bonding and environmental properties.

For high-quality electronic assembly, the gasket should be designed as part of the overall product structure rather than treated as an isolated accessory. Correct material selection, accurate die cutting, appropriate adhesive selection, controlled compression, and reliable quality inspection can significantly improve assembly consistency and long-term performance.

A well-designed adhesive cushion sealing gasket can help electronic products achieve better protection, cleaner assembly, improved dimensional tolerance management, reduced vibration, and more reliable component positioning.
