High Quality DuPont Paper Insulation Gasket products are precision engineered electrical insulation components designed for applications that require reliable electrical isolation, dimensional stability, flame resistance, thermal protection, and controlled mechanical spacing. When manufactured from genuine DuPont Nomex® aramid paper, these Insulation Gaskets can provide a combination of electrical, thermal, and mechanical properties that makes them suitable for demanding electrical and electronic assemblies.
Precision die cut Nomex® insulation gaskets are particularly relevant to lithium ion battery cells, battery modules, battery PACK assemblies, electric power systems, motors, transformers, circuit boards, busbars, connectors, and other electrical components where conductive parts must be separated from one another.
The term DuPont Paper Insulation Gasket generally describes an insulation gasket made from a DuPont branded electrical insulation paper or a comparable specified material. For applications where genuine Nomex® is required, the exact Nomex® grade, thickness, adhesive system, processing method, and performance requirements should always be verified before production or assembly.
Nomex® is an aramid paper material known for its electrical insulation capability and resistance to elevated temperatures. Its fibrous aramid structure provides useful mechanical integrity while maintaining electrical insulation properties. When converted into precision die cut gaskets, the material can be shaped to match complex battery and electrical component geometries.
This article provides an industry-oriented overview of high quality DuPont Nomex® paper insulation gaskets, including their definition, construction, electrical insulation function, battery applications, material characteristics, die cutting, adhesive options, thermal performance, dimensional considerations, quality control, storage, installation, and selection criteria.
A DuPont Paper Insulation Gasket is a thin, shaped insulating component manufactured from an electrical insulation paper material such as Nomex® aramid paper. Unlike conventional Sealing Gaskets whose primary purpose is to prevent liquid or gas leakage, an electrical insulation gasket is primarily designed to create a controlled insulating barrier between conductive or potentially conductive components.
The gasket can also perform secondary functions such as spacing, surface protection, cushioning, abrasion reduction, and positioning.
In battery assemblies, the insulation gasket may be installed between a metal battery cell housing and a circuit board, between adjacent cells, around terminals, beneath busbars, or between electrical conductors and structural metal parts.

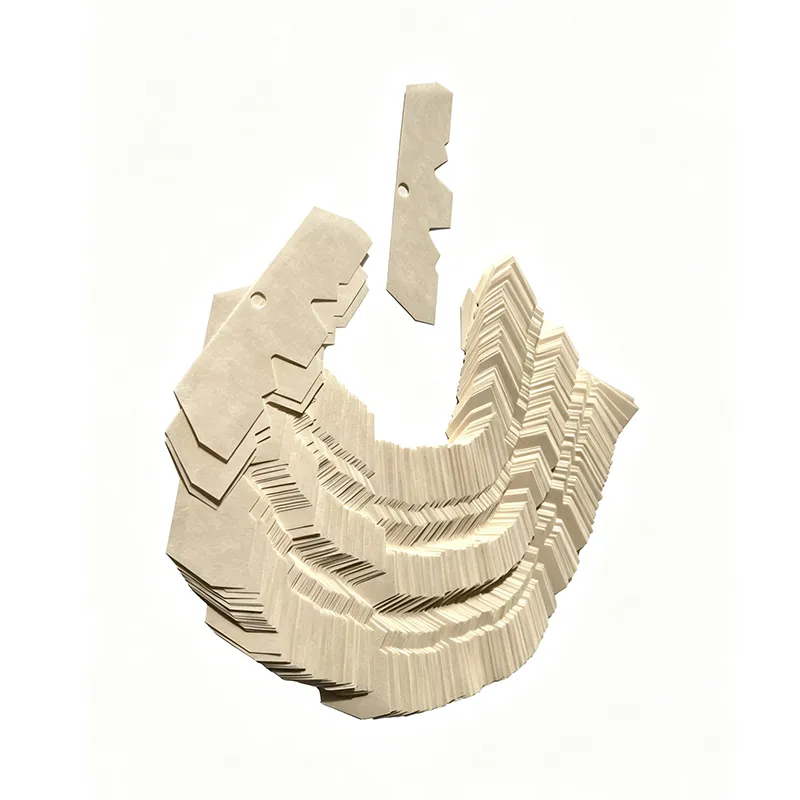

The gasket geometry can be customized to the assembly. Common shapes include:
Round insulation gaskets
Rectangular insulation gaskets
Square insulation gaskets
L shaped insulation gaskets
U shaped insulation gaskets
Ring shaped insulation gaskets
Tab protection gaskets
Busbar insulation pads
Battery cell insulation sheets
PCB insulation pads
Custom die cut insulation components
The material is normally supplied in sheet or roll form before conversion into individual components. Precision die cutting allows manufacturers to produce repeatable shapes and dimensions for automated or manual assembly.
Nomex® is a registered trademark associated with aramid fiber based materials developed for demanding electrical and thermal applications. Aramid paper has a distinctive combination of electrical insulation, thermal resistance, mechanical integrity, and flame resistance.
The material should not simply be considered ordinary paper. Although it is visually and physically similar to paper in some applications, its fiber composition and manufacturing process provide substantially different performance characteristics.
Nomex® Electrical Insulation Materials are available in different grades and constructions. Therefore, the properties of one Nomex® grade should not automatically be applied to another grade.
For electrical gasket applications, the material selection process should consider:
Required dielectric strength
Required thickness
Operating temperature
Short term temperature exposure
Long term thermal exposure
Mechanical compression
Flexibility requirements
Tear resistance
Puncture resistance
Surface condition
Adhesive compatibility
Battery electrolyte exposure
Dimensional tolerances
Flame resistance requirements
Environmental conditions
The exact material specification should be selected according to the actual application rather than based only on the general name Nomex®.
Why Use Aramid Paper for Electrical Insulation Gaskets?
Aramid paper is widely considered when electrical insulation must operate in environments where ordinary polymer films or paper based materials may not provide the desired combination of thermal and electrical performance.
A precision die cut aramid paper gasket can create a physical barrier between conductive components while occupying relatively little assembly space.
This is particularly valuable in compact battery modules, where the distance between electrically conductive components can be small.
The major advantages include:
The primary function is to prevent unintended electrical contact between components.
A properly selected insulation gasket can separate:
Metal battery housings
Busbars
Terminals
PCB solder joints
BMS components
Conductive Brackets
Connector contacts
Battery tabs
Metal structural parts
The actual insulation capability depends on material grade, thickness, voltage, temperature, surface contamination, geometry, and test conditions.
Aramid Insulation Materials are designed for applications involving elevated temperatures. Compared with many conventional low temperature insulation materials, selected Nomex® grades can maintain useful electrical and mechanical properties at higher operating temperatures.
This makes them useful around motors, transformers, batteries, power electronics, and other equipment where heat is generated during operation.
Aramid materials are known for their flame resistant characteristics. However, flame classification must always be evaluated according to the specific material grade and applicable testing standard.
A statement such as UL94 V 0 should not be assumed for every Nomex® material simply because the material belongs to the Nomex® family. The actual grade and construction must meet the required certification or test specification.
A gasket must remain sufficiently stable during assembly and operation. Excessive dimensional change can create clearance problems or reduce the intended insulating barrier.
Precision die cutting also requires a stable substrate so that the finished components maintain consistent geometry.
In addition to electrical isolation, a Thin Insulation Gasket can help reduce direct contact between hard surfaces.
It may provide a degree of:
Surface protection
Abrasion protection
Contact separation
Edge protection
Cushioning
Spacing
Component positioning
The degree of cushioning depends strongly on material thickness, compression, density, and assembly design.
Electrical Isolation in Lithium Ion Battery Cells
Lithium ion batteries contain multiple electrically active components positioned within a compact mechanical structure.
A cylindrical or prismatic battery cell may have metal components that can become electrically connected under incorrect assembly conditions.
The insulation gasket provides a physical insulating barrier.
For example, a thin die cut insulation sheet can be installed between adjacent cell structures where the design requires electrical separation.
The material can also be used around terminals and conductive connection areas.
Battery insulation design is particularly important because a short circuit can produce high current and localized heating.
The gasket therefore contributes to the overall electrical safety architecture of the battery assembly.
However, an insulation gasket should never be considered the only safety mechanism. Battery systems require coordinated electrical, mechanical, thermal, and electronic protection.
Insulation Between Cylindrical Battery Cells
Cylindrical cells such as 18650 and 21700 formats are commonly assembled into battery packs.
During pack assembly, adjacent cells may be positioned very close to one another.
An insulation component can be used to separate cell surfaces or protect areas where conductive parts could otherwise make unintended contact.
A die cut aramid paper gasket can be designed according to:
Cell diameter
Cell length
Terminal configuration
Pack structure
Holder design
Busbar arrangement
Required clearance
Assembly tolerance
The exact gasket shape should be developed according to the battery pack drawing rather than using a generic shape.
Insulation Between PCB or BMS and Battery Housing
Battery management systems and protection boards often contain conductive solder joints, traces, terminals, and electronic components.
When a PCB or BMS is installed near a metal battery housing, an insulating barrier may be required.
An L shaped or rectangular Nomex® insulation gasket can be positioned between the PCB assembly and the metal surface.
The gasket helps prevent direct contact between:
PCB solder joints
Metal battery housing
Conductive terminals
Metal brackets
Screws
Busbars
This application is especially important when the metal housing has an electrical potential that differs from nearby circuit components.
The gasket geometry can be customized to cover only the required area, reducing material usage and maintaining assembly clearance.
Busbar Insulation Applications
Busbars carry relatively high electrical current and can be positioned close to structural components.
Insulation gaskets can be installed beneath or around busbars to maintain electrical clearance.
Typical applications include:
Battery busbars
Power distribution assemblies
Battery module connectors
Electrical terminals
Copper conductors
Aluminum conductors
Power conversion equipment
The gasket thickness must be sufficient for the required insulation performance while remaining compatible with the mechanical design.
A thicker gasket is not automatically better. Excessive thickness can interfere with assembly, increase compression, or change the position of a busbar.
Battery PACK Insulation
A battery PACK contains multiple interconnected components.
These may include:
Battery cells
Cell holders
Busbars
BMS boards
Connectors
Wiring
Terminals
Metal housings
Structural frames
Cooling components
Insulation layers
Electrical insulation gaskets may be placed at multiple locations within the PACK.
Their functions can include:
Electrical isolation
Short circuit prevention
Component spacing
Surface protection
Edge protection
Local thermal protection
Positioning
Abrasion reduction
A well designed insulation system typically uses different shapes and thicknesses for different locations.
Thermal Runaway Considerations
Battery thermal runaway is a complex failure phenomenon involving rapid heat generation and potentially hazardous reactions.
An insulation gasket alone cannot prevent thermal runaway.
However, properly selected flame resistant and thermally stable insulation materials can form part of a broader battery safety design.
A Nomex® based insulation layer may help separate components and can contribute to resistance against flame propagation depending on the exact grade, thickness, construction, and application.
The performance of the complete battery system must be evaluated under relevant thermal abuse and safety conditions.
It is therefore inappropriate to treat a gasket material as a standalone thermal runaway protection system.
Precision Die Cutting of Nomex Insulation Gaskets
Precision die cutting is one of the most common manufacturing methods for producing shaped insulation gaskets.
The process converts flat insulation material into repeatable parts.
Depending on the material thickness, geometry, volume, and tolerance requirements, different converting technologies may be used.
Typical manufacturing steps include:
Material inspection
Material preparation
Drawing review
Die or tooling preparation
Trial cutting
Dimensional inspection
Adhesive lamination if required
Final die cutting
Visual inspection
Packaging
Precision processing is particularly important for battery applications because the available assembly space can be limited.
Custom Shapes for Battery Applications
One advantage of die cut insulation gaskets is the ability to create application specific shapes.
A single gasket can incorporate:
Mounting holes
Cutouts
Slots
Rounded corners
Tabs
Positioning features
Clearance windows
Terminal openings
Connector openings
This can reduce the need for multiple separate insulating pieces.
A custom gasket can also be designed to fit around existing components while leaving required electrical clearance.
Single Sided Adhesive Insulation Gaskets
Single sided adhesive insulation gaskets have adhesive applied to one side of the insulating substrate.
The opposite side remains primarily an insulating surface.
This configuration is useful when the gasket needs to remain fixed to one component during assembly.
Typical applications include:
Battery cell positioning
PCB insulation
Terminal protection
Busbar insulation
Connector insulation
Component surface protection
The adhesive system should be selected based on temperature, surface energy, chemical exposure, aging requirements, and assembly conditions.
Double Sided Adhesive Insulation Gaskets
Double sided adhesive insulation gaskets have adhesive on both sides.
They can bond the insulating layer between two surfaces.
This configuration can simplify assembly when the gasket must remain fixed between two components.
However, double sided adhesive can also affect the overall electrical and thermal characteristics of the assembly.
Therefore, adhesive thickness and adhesive chemistry should be considered as part of the complete insulation design.
Adhesive Selection for Electrical Insulation
Adhesive selection is an important part of gasket engineering.
The adhesive should not be selected solely according to initial tack.
Important characteristics may include:
Initial adhesion
Peel strength
Shear strength
Temperature resistance
Aging resistance
Humidity resistance
Chemical resistance
Electrolyte compatibility
Electrical insulation
Outgassing characteristics
Surface compatibility
For battery applications, compatibility with the electrolyte environment should be carefully evaluated.
A material that performs well in a general industrial application may not necessarily be appropriate inside a lithium ion battery environment.
Nomex Insulation Gasket Thickness
Thickness is one of the most important selection parameters.
Common battery insulation thicknesses may include approximately:
0.13 mm
0.18 mm
0.25 mm
0.30 mm
These values are examples of commonly considered thicknesses rather than universal specifications.
The correct thickness depends on the application.
A thinner material can provide:
Better space efficiency
Lower material consumption
Easier fitting in compact assemblies
A thicker material can provide:
Greater physical separation
Increased puncture resistance
Additional mechanical protection
Greater tolerance to certain assembly conditions
However, excessive thickness may reduce available pack space.
Dielectric Strength
Dielectric strength describes the ability of an insulating material to withstand an applied electric field before electrical breakdown occurs under specified test conditions.
It is usually expressed in kilovolts per millimeter or a related unit.
A value around or above 18 kV/mm may be relevant for certain Nomex® insulation materials under specified test conditions, but the actual value must be confirmed from the technical data for the selected grade.
Dielectric strength is affected by:
Material thickness
Temperature
Humidity
Test method
Electrode geometry
Surface contamination
Material condition
Exposure history
Therefore, a dielectric strength value should always be interpreted together with its test method and conditions.
High Voltage Battery Applications
Modern electric vehicles and energy storage systems may operate at hundreds of volts.
Common system architectures include approximately 400 V and 800 V classes.
At these voltage levels, electrical clearance and insulation design become increasingly important.
A Nomex® insulation gasket can be one component of the insulation system.
The complete design should consider:
Working voltage
Transient voltage
Clearance
Creepage
Insulation thickness
Pollution level
Humidity
Temperature
Mechanical movement
Vibration
Manufacturing tolerances
The gasket material should be validated under the actual operating conditions.
Temperature Resistance
Thermal performance is another reason aramid paper is considered for electrical insulation.
Depending on the exact material grade, Nomex® products can be used in demanding thermal environments.
Some electrical insulation systems are designed around long term thermal exposure in the approximate 180°C to 220°C range or other specified temperature classes.
However, these figures should not be generalized to every Nomex® product.
The actual continuous operating temperature depends on:
Nomex® grade
Material thickness
Electrical stress
Mechanical stress
Chemical environment
Duration
Temperature cycling
Adjacent materials
For this reason, application engineers should select the material according to the manufacturer's technical documentation.
Resistance to Flame and Heat
Aramid insulation materials are valued for their inherent flame resistant characteristics.
Unlike many thermoplastic films, aramid paper does not behave like a conventional meltable plastic.
This can be advantageous in applications where exposure to elevated temperatures or flame is possible.
Nevertheless, the phrase "does not melt" should not be interpreted as meaning that the material is immune to all thermal degradation.
At sufficiently high temperatures, organic materials can undergo thermal decomposition.
Therefore, thermal protection claims should always be based on the actual material grade and test conditions.
Why Precision Matters in Electrical Gaskets
A gasket can have excellent material properties and still fail to perform correctly if its dimensions are inaccurate.
For battery applications, dimensional accuracy can affect:
Electrical clearance
Component positioning
Assembly speed
Adhesive contact
Terminal accessibility
Mechanical interference
Automated assembly
Precision die cutting helps produce repeatable components.
Critical dimensions should be identified on engineering drawings.
Examples include:
Outside diameter
Inside diameter
Overall length
Overall width
Hole diameter
Slot width
Corner radius
Tab length
Material thickness
Dimensional Tolerance
Tolerance requirements should be determined according to the application.
Not every dimension needs the same tolerance.
Critical insulation boundaries may require tighter dimensional control than nonfunctional outer edges.
For example, a cutout around a conductive terminal may require closer control than a large external edge.
A practical design should balance:
Required accuracy
Production volume
Material characteristics
Tooling method
Cost
Assembly requirements
Overly strict tolerances can increase manufacturing complexity without improving product performance.
Surface Quality
Surface condition is important for both insulation and adhesive bonding.
The surface should be free from unacceptable:
Dust
Oil
Grease
Loose fibers
Foreign particles
Excessive contamination
Cutting debris
For adhesive-backed parts, surface cleanliness is particularly important.
Contamination can reduce adhesion and potentially introduce defects into the insulation barrier.
Adhesive Backed Nomex Gaskets
Adhesive-backed Nomex® gaskets combine an insulating substrate with an adhesive layer.
The adhesive can make assembly faster because the operator does not need to manually position a loose insulation sheet.
The part can be supplied with a release liner.
Typical construction may consist of:
Release Liner → Adhesive Layer → Nomex® Insulation Paper
For double sided construction, the structure may contain adhesive on both sides of the Nomex® substrate.
The exact construction depends on the application.
Release Liner
A release liner protects the adhesive before assembly.
It also allows the die cut gasket to be handled and transported without the adhesive bonding prematurely.
Important liner characteristics include:
Release force
Thickness
Dimensional stability
Die cutting compatibility
Clean release
Moisture resistance
Compatibility with the adhesive
The liner should be easy to remove without lifting or deforming the insulation gasket.
Battery Electrolyte Compatibility
Electrolyte compatibility is an important consideration when using insulation materials inside lithium ion battery systems.
Battery electrolytes may contain organic solvents and lithium salts.
Long term exposure can affect some polymeric or adhesive materials.
Potential effects may include:
Swelling
Softening
Loss of adhesion
Surface changes
Dimensional changes
Chemical degradation
For this reason, material qualification should include electrolyte exposure testing when the gasket is located inside a battery cell or in an environment where electrolyte contact is possible.
Nomex® 200 series materials may be considered for certain battery applications where enhanced chemical resistance is required, but the exact grade and application should be verified.
Nomex Versus Ordinary Electrical Paper
Ordinary electrical paper can provide useful insulation for many applications.
However, aramid paper is selected when higher thermal and mechanical performance may be required.
Compared with conventional paper materials, aramid paper can offer a different combination of:
Thermal stability
Electrical insulation
Flame resistance
Mechanical integrity
Dimensional stability
The correct choice depends on the application.
There is no single insulation material that is optimal for every electrical system.
Nomex Versus Polyester Film
Polyester film is widely used for electrical insulation because it can provide:
Smooth surfaces
Good dielectric properties
Flexibility
Low thickness
Consistent film structure
Nomex® aramid paper may be preferred where greater thermal resistance and flame resistance are required.
The choice should be based on:
Temperature
Voltage
Mechanical stress
Thickness
Flexibility
Flame requirements
Chemical environment
Cost
In some designs, polyester and Nomex materials can also be used together as part of a composite insulation system.
Nomex Versus Polyimide Film
Polyimide film is another high performance electrical insulation material.
It is known for high temperature capability and excellent dielectric properties.
Nomex® aramid paper has a different structure and can provide different mechanical characteristics.
The selection between aramid paper and polyimide film should be based on the actual design requirements.
For some applications, aramid paper may provide better thickness-to-mechanical-performance characteristics, while polyimide film may be preferred where extremely thin, flexible film insulation is needed.
Nomex Versus Tyvek
Nomex® and Tyvek® are fundamentally different materials.
Tyvek® is primarily a high density polyethylene material.
Nomex® is an aramid based material.
They should not be considered interchangeable.
Tyvek® is commonly associated with protective packaging, breathable protective structures, and related applications.
Nomex® is widely associated with electrical insulation and thermal protection.
Therefore, a battery designer should never substitute Tyvek® for a specified Nomex® electrical insulation gasket without engineering validation.
Common Electrical Applications
High quality Nomex® insulation gaskets can be considered for a broad range of electrical applications.
Potential applications include:
Lithium ion batteries
Battery modules
Battery PACKs
Energy storage systems
Electric vehicles
E bike battery systems
Power tools
Motors
Generators
Transformers
Power supplies
Circuit boards
BMS assemblies
Busbars
Electrical connectors
Switchgear
Power electronics
Industrial control systems
The actual suitability depends on the selected grade and operating environment.
Motor Insulation Applications
Electric motors contain coils, windings, slots, terminals, and conductive structures.
Electrical insulation materials may be used to separate conductive components from metal motor structures.
Die cut Nomex® parts can be designed for:
Coil insulation
Terminal insulation
Slot insulation
Winding protection
Spacer applications
Connection isolation
The gasket geometry must be compatible with motor assembly conditions and winding movement.
Transformer Insulation Applications
Transformers require insulation between windings, cores, terminals, and structural components.
Aramid paper can be used in certain transformer insulation systems where thermal and electrical performance are important.
Die cut gasket shapes may be used around:
Coil assemblies
Terminals
Connection points
Structural supports
Spacers
Material selection should follow the transformer's insulation system requirements.
PCB Insulation Applications
Printed circuit boards can contain densely packed components and exposed conductive areas.
A thin insulation gasket can be positioned between the PCB and a metal enclosure.
This is particularly useful where:
Solder joints extend below the PCB
Metal housings are close to conductive traces
Screws or brackets could contact the PCB
Vibration may cause movement
Additional surface protection is needed
The gasket should not interfere with PCB components or thermal management features.
BMS Insulation Applications
Battery management systems are critical components of modern battery packs.
BMS boards may contain sensing circuits, connectors, power components, and communication interfaces.
A die cut insulation gasket can help isolate the BMS from the battery housing.
Common shapes include:
Rectangular pads
L shaped barriers
U shaped barriers
Custom perimeter pieces
Connector protection pads
The gasket should be designed around the actual PCB geometry.
Busbar Protection
Busbars are conductive and often carry high current.
Insulation around busbars helps reduce the possibility of accidental contact with surrounding conductive or grounded structures.
A precision die cut gasket can include openings that expose only the intended electrical connection points.
This provides controlled insulation coverage while allowing electrical assembly.
Terminal Insulation
Battery and electrical terminals are common locations for Insulating Gaskets.
The gasket may surround a terminal while maintaining the required opening for electrical connection.
The design can incorporate:
Terminal holes
Positioning tabs
Protective wings
Anti rotation features
Custom clearance zones
Correct positioning is essential.
Mechanical Protection
Electrical insulation gaskets can also provide limited mechanical protection.
When placed between two surfaces, the gasket can reduce:
Direct metal to metal contact
Surface scratching
Abrasion
Local impact
Component movement
However, an insulation gasket should not be treated as a structural shock absorber unless its mechanical performance has been specifically validated for that purpose.
Vibration Considerations
Battery modules and electrical systems can experience vibration.
Repeated movement may cause two surfaces to rub against one another.
An insulating layer can help reduce direct surface contact.
Adhesive backing may help keep the gasket in position.
The complete assembly should still be tested for:
Vibration
Shock
Temperature cycling
Humidity
Adhesive aging
Mechanical movement
Moisture and Environmental Conditions
Environmental conditions can influence electrical insulation performance.
Humidity can affect surface leakage and certain adhesive systems.
Other environmental factors include:
Water
Condensation
Oil
Grease
Cleaning chemicals
Battery electrolyte
Dust
Salt
Temperature cycling
The selected material should be qualified under the actual environmental conditions.
Grease and Oil Resistance
Some electrical assemblies operate near lubricants or oils.
The insulation material should be evaluated for chemical compatibility if exposure is expected.
Aramid paper itself may have useful resistance characteristics, but the adhesive layer can behave differently.
Therefore, for adhesive backed gaskets, both the substrate and adhesive should be evaluated.
High Quality Manufacturing Requirements
A high quality insulation gasket should have consistent material and conversion quality.
Important manufacturing controls include:
Material traceability
Thickness control
Dimensional inspection
Die cut accuracy
Adhesive coverage
Surface cleanliness
Liner quality
Packaging control
Quality control should be appropriate for the final application.
Battery applications may require stricter process control than general low voltage applications.
Material Traceability
Material traceability helps identify:
Material grade
Material batch
Thickness
Production date
Adhesive type
Conversion batch
Traceability is particularly useful for high reliability electrical applications.
If a quality issue occurs, traceability can help identify the affected production batch.
Visual Inspection
Visual inspection can identify obvious defects such as:
Tears
Cuts
Contamination
Wrinkles
Delamination
Missing adhesive
Adhesive overflow
Incorrect shape
Damaged release liner
The inspection method should be appropriate for the gasket's size and complexity.
Thickness Inspection
Thickness consistency is important because insulation performance and assembly clearance can depend on thickness.
Measurement should consider:
Base material thickness
Adhesive thickness
Total construction thickness
For adhesive backed products, specifying only the Nomex® substrate thickness may not adequately describe the final installed thickness.
Die Cut Edge Quality
The die cut edge should be sufficiently clean for the intended application.
Poor cutting can create:
Loose fibers
Burr like fragments
Delamination
Uneven edges
Dimensional variation
Edge quality is particularly important near high voltage components and precision mechanical assemblies.
Packaging of Die Cut Insulation Gaskets
Proper packaging helps protect the parts from:
Dust
Moisture
Mechanical deformation
Adhesive contamination
Excessive compression
Small precision gaskets can be supplied in stacks, rolls, sheets, bags, or other application specific formats.
For adhesive backed components, the release liner should remain intact during transportation and storage.
Storage Recommendations
Storage conditions should follow the material and adhesive supplier's recommendations.
In general, insulation gasket products should be protected from:
Excessive humidity
Direct sunlight
High temperatures
Dust
Chemical contamination
Excessive pressure
Mechanical deformation
Adhesive products may have specific shelf life requirements.
The original packaging should remain closed until the material is ready for use.
Installation of Adhesive Insulation Gaskets
Proper installation is essential.
A typical installation process includes:
Clean the target surface.
Confirm the correct gasket shape.
Remove the release liner.
Avoid touching the adhesive excessively.
Align the gasket carefully.
Apply controlled pressure.
Verify full contact.
Inspect the final position.
The exact process depends on the adhesive system and assembly design.
Surface Preparation
Before applying an adhesive gasket, the bonding surface should generally be clean and dry.
Potential contaminants include:
Oil
Grease
Dust
Moisture
Release agents
Loose particles
Surface preparation methods should be compatible with the substrate and adhesive.
Positioning Accuracy
Because many Battery Insulation Gaskets are small and precisely shaped, incorrect positioning can reduce coverage.
A gasket positioned too close to a conductive edge may fail to provide the intended clearance.
A gasket positioned too far away may interfere with another component.
For high volume production, assembly fixtures or automated placement systems can improve consistency.
Automated Assembly
Die cut insulation gaskets can be designed for automated production.
Important design considerations include:
Consistent part dimensions
Stable release liner
Suitable adhesive tack
Easy liner removal
Accurate registration
Machine handling compatibility
Roll or sheet formats can be selected according to the production process.
Custom Die Cut Insulation Gaskets
Custom die cut gaskets are often produced from customer drawings.
A typical drawing may specify:
Material
Grade
Thickness
Shape
Dimensions
Tolerances
Adhesive
Liner
Quantity
Packaging
Inspection requirements
A good technical drawing helps prevent material and geometry misunderstandings.
Design Considerations for High Voltage Applications
High voltage insulation requires more than simply selecting a high dielectric strength material.
Designers should consider:
The physical distance through air between conductive components.
The distance measured along the surface of an insulating material.
The physical thickness of the insulating barrier.
Dust, moisture, electrolyte residue, and other contamination can reduce effective insulation performance.
Electrical properties can change with temperature.
Vibration or thermal expansion can alter the distance between components.
These factors should be evaluated together.
Battery Safety and Insulation Design
Battery safety is a system level issue.
A high quality insulation gasket contributes to the electrical insulation system but does not replace:
Battery management systems
Fuses
Current protection
Thermal monitoring
Cell balancing
Mechanical containment
Venting systems
Thermal barriers
Safety testing
The gasket should be treated as one component within the overall safety architecture.
Advantages of Precision Nomex Insulation Gaskets
The main advantages can be summarized as follows:
The gasket creates a controlled insulating barrier.
Selected aramid paper grades are suitable for demanding thermal environments.
Aramid materials offer useful flame resistant characteristics.
Precision die cutting allows complex shapes.
Thin gaskets can provide insulation without consuming excessive assembly space.
Single or double sided adhesive can simplify assembly.
The material can provide useful resistance to handling and mechanical stress.
Custom parts can be designed for batteries, motors, transformers, PCBs, busbars, connectors, and other electrical systems.
Selecting the Correct Nomex Grade
One of the most important decisions is choosing the appropriate material grade.
Different Nomex® products may have different:
Thickness ranges
Mechanical properties
Electrical properties
Thermal characteristics
Chemical resistance
Surface characteristics
Therefore, the material name alone is insufficient for engineering approval.
The grade should be specified.
For battery applications, the engineering team should also consider electrolyte compatibility and long term chemical stability.
Nomex T410
Nomex® T410 is widely associated with electrical insulation applications.
It is a calendered aramid paper product used in various electrical insulation systems.
It can be converted into die cut components for applications requiring thin electrical barriers.
The suitability of T410 depends on the specific application and required performance.
Nomex 200 Series
Nomex® 200 series materials are associated with electrical insulation applications and may be considered for battery related designs where specific performance requirements are needed.
The exact properties vary by grade.
Battery designers should consult the relevant technical documentation rather than assuming that all 200 series products have identical performance.
Choosing Thickness for Battery Packs
Thickness selection should balance electrical protection and space efficiency.
For compact battery assemblies, common starting points may include 0.13 mm, 0.18 mm, 0.25 mm, and 0.30 mm.
The final choice should be based on:
Required voltage insulation
Mechanical clearance
Puncture risk
Assembly pressure
Available space
Temperature
Manufacturing tolerance
Required safety margin
A prototype should be tested before mass production.
Insulation Gasket for 18650 Batteries
18650 cells are commonly used in compact battery packs.
A precision die cut insulation gasket can be designed around the cell dimensions and pack architecture.
Potential functions include:
Cell to cell isolation
Terminal insulation
Busbar isolation
PCB protection
Housing isolation
Component spacing
The actual gasket design should correspond to the specific cell and battery holder.
Insulation Gasket for 21700 Batteries
21700 cells are larger than 18650 cells and are widely used in modern high capacity battery systems.
The insulation requirements are similar but the dimensions and mechanical structure differ.
Custom gaskets can be designed to match:
Cell diameter
Cell holder
Busbar geometry
Terminal position
BMS structure
Pack enclosure
Insulation Gaskets for Prismatic Cells
Prismatic battery cells have a different geometry from cylindrical cells.
The larger flat surfaces and rigid housing create different insulation challenges.
Die cut Nomex® sheets may be used between:
Cells
Cell housings
Busbars
Structural components
Electrical terminals
Large flat insulation components can also be produced with customized holes and slots.
Insulation for Pouch Cell Systems
Pouch cells use flexible packaging structures rather than rigid metal cylindrical housings.
Insulation requirements are therefore different.
Aramid paper can potentially be used in supporting electrical insulation structures, but the exact application should account for:
Pouch material
Cell expansion
Compression
Electrolyte exposure
Edge protection
Thermal requirements
Material qualification is particularly important for direct internal contact applications.
Electric Vehicle Battery Applications
Electric vehicle battery systems place high demands on insulation materials.
The insulation system may need to withstand:
High voltage
High current
Vibration
Temperature cycling
Moisture
Mechanical shock
Long service life
A precision die cut Nomex® insulation gasket can be used as a localized insulation component.
The gasket should be validated under automotive environmental and electrical requirements where applicable.
Energy Storage Battery Applications
Stationary energy storage systems also use lithium ion battery modules.
Insulation gaskets may be used around:
Battery terminals
Busbars
BMS boards
Module structures
Electrical connectors
Metal housings
Large scale energy storage systems may require multiple insulation materials depending on the location.
Power Tool Battery Applications
Power tool battery packs often require compact and lightweight insulation solutions.
A die cut gasket can be designed to fit within small housings while protecting:
Battery cells
Terminals
Circuit boards
Busbars
Wiring
The thin profile of aramid paper can be beneficial where available space is limited.
E Bike Battery Applications
E bike battery packs may use cylindrical cells and compact BMS assemblies.
Insulation gaskets can provide:
Cell isolation
Terminal protection
BMS insulation
Busbar insulation
Housing separation
The exact design should account for vibration, moisture, temperature, and repeated charging cycles.
Industrial Electrical Applications
Outside battery technology, precision aramid insulation gaskets can also be considered for industrial electrical equipment.
Potential applications include:
Motor assemblies
Transformer assemblies
Generators
Power supplies
Switchgear
Industrial controls
Electrical connectors
Power modules
The material specification should match the electrical class and thermal environment.
Common Gasket Shapes
Common shapes include:
Used around circular components and terminals.
Suitable for PCB protection and surface isolation.
Useful for protecting two perpendicular surfaces.
Useful for wrapping around a component edge.
Used around holes, terminals, and connectors.
Used when standard geometry cannot provide the required coverage.
Why Die Cut Instead of Manually Cut Insulation?
Manual cutting can produce inconsistent dimensions and poor repeatability.
Precision die cutting provides:
Repeatable geometry
Higher production efficiency
Consistent dimensions
Cleaner edges
Easier automation
Better material utilization
For high volume battery manufacturing, consistent gasket geometry is particularly important.
Material Utilization
Die cutting generates some production scrap.
Tool design can optimize part nesting to improve material utilization.
Important considerations include:
Part shape
Roll width
Sheet dimensions
Spacing between parts
Grain or fiber orientation where relevant
Production volume
Efficient nesting can reduce material consumption while maintaining required quality.
Quality Inspection for Battery Insulation Gaskets
A comprehensive quality program may include:
Material verification
Thickness inspection
Dimensional inspection
Visual inspection
Adhesive inspection
Dielectric testing
Adhesion testing
Thermal testing
Chemical compatibility testing
The exact inspection plan should correspond to the application.
Dielectric Testing
Dielectric testing evaluates the insulation barrier under controlled voltage conditions.
Testing may include:
Dielectric breakdown testing
Withstand voltage testing
Insulation resistance testing
The test method must be clearly defined.
Results should not be compared directly if different test methods or conditions are used.
Adhesion Testing
For adhesive backed gaskets, adhesion should be evaluated on the actual intended substrate when possible.
Potential tests include:
Peel adhesion
Shear adhesion
Initial tack
Aging adhesion
Testing should consider temperature and environmental exposure.
Thermal Aging Testing
Thermal aging can help determine whether the gasket maintains required performance after prolonged heat exposure.
Potential evaluation criteria include:
Appearance
Dimensional stability
Adhesion
Dielectric properties
Mechanical integrity
Accelerated aging should be interpreted according to an appropriate test methodology.
Chemical Compatibility Testing
For battery applications, chemical testing may expose the material and adhesive to representative electrolyte or environmental conditions.
The test can evaluate:
Swelling
Softening
Mass change
Dimensional change
Adhesion
Electrical performance
Surface condition
This is particularly important for components located inside or near battery electrolyte environments.
Common Selection Mistakes
Several mistakes can occur when selecting insulation gaskets.
Thickness alone does not determine suitability.
The substrate may perform well while the adhesive fails under temperature or chemical exposure.
Different grades have different properties.
These materials are fundamentally different.
A high dielectric strength material does not eliminate the need for proper electrical spacing.
Battery applications require appropriate validation.
Nomex Insulation Gasket Versus Generic Aramid Paper
Generic aramid paper may offer useful insulation characteristics.
However, a specified Nomex® grade provides a defined material identity and documented technical characteristics.
For critical applications, material traceability and documented specifications can be important.
If a generic substitute is considered, it should undergo equivalent qualification.
Customization Options
A Precision Insulation Gasket can be customized in multiple ways.
Possible options include:
Custom material grade
Custom thickness
Custom shape
Custom dimensions
Single sided adhesive
Double sided adhesive
Custom adhesive
Custom release liner
Roll supply
Sheet supply
Individual pieces
High volume die cutting
Customization should always be based on the final assembly requirements.
Recommended Engineering Workflow
A practical development process can include:
Identify where the gasket will be installed.
Determine voltage, insulation class, clearance, and creepage requirements.
Determine continuous and peak temperatures.
Choose the appropriate Nomex® grade.
Balance insulation performance and available space.
Create the required die cut shape.
Choose adhesive according to the substrate and environment.
Produce initial samples.
Evaluate electrical, mechanical, thermal, and chemical performance.
Finalize specifications and inspection requirements.
Packaging and Identification
Industrial insulation gaskets should be clearly identified during storage and assembly.
Identification may include:
Material grade
Thickness
Part number
Drawing revision
Adhesive type
Production batch
Quantity
Date
Clear identification reduces the risk of using the wrong gasket.
Sustainability and Material Efficiency
Material efficiency is becoming increasingly important in electrical component manufacturing.
Precision die cutting can reduce unnecessary material use through optimized nesting.
Lightweight thin insulation materials can also reduce the overall mass of an assembly.
However, sustainability decisions should not compromise electrical safety or material qualification.
Future Applications of Aramid Insulation Gaskets
As electrical systems become smaller, more powerful, and more densely integrated, the need for reliable thin insulation materials is expected to remain important.
Potential growth areas include:
Electric vehicles
Battery energy storage
Fast charging equipment
Power electronics
Renewable energy systems
Robotics
Industrial automation
Aerospace electrical systems
High power battery systems
Precision die cut insulation components can support these applications by providing localized electrical barriers.
Frequently Asked Questions
A DuPont Paper Insulation Gasket is a precision shaped electrical insulation component made from a specified DuPont electrical insulation material, such as Nomex® aramid paper. It is used to separate conductive components and provide electrical isolation.
Selected Nomex® grades can be suitable for lithium battery insulation applications. The exact grade, thickness, adhesive, temperature range, electrical requirements, and electrolyte compatibility must be verified for the intended application.
Yes. Nomex® aramid paper can be converted into precision die cut components in many shapes, subject to the selected grade and processing method.
Yes. Adhesive backed constructions can be produced using suitable adhesive systems. Single sided and double sided adhesive configurations are possible.
Yes, selected Nomex® insulation materials can be considered for isolating a PCB from a nearby metal housing when the material thickness and design meet the required electrical and mechanical specifications.
Selected Nomex® materials can be used for busbar insulation applications, provided that the electrical, thermal, mechanical, and environmental requirements are satisfied.
No. Nomex® is an aramid based material, while Tyvek® is primarily a high density polyethylene material. They have different properties and applications.
No. Flame classification depends on the exact material, construction, thickness, and applicable test conditions. The relevant technical documentation should be checked for any specific UL94 requirement.
A 0.13 mm material may be suitable for some battery insulation applications, but suitability depends on voltage, geometry, puncture risk, thermal conditions, and required insulation performance.
No. A thicker gasket can improve physical separation but may consume valuable assembly space and create mechanical interference. The correct thickness should be determined by engineering requirements.
Round, rectangular, square, L shaped, U shaped, ring shaped, tab shaped, and highly customized geometries can be produced depending on the die cutting process.
Yes. Custom dimensions, thicknesses, shapes, adhesive systems, liners, and packaging formats can be specified according to application requirements.
Conclusion
A High Quality DuPont Paper Insulation Gasket for Electrical Applications can provide a compact and precisely engineered electrical isolation solution for demanding electrical assemblies. When manufactured from an appropriate DuPont Nomex® aramid paper grade, the gasket can combine electrical insulation, thermal stability, flame resistance, mechanical integrity, and customizable geometry.
In lithium ion battery systems, precision die cut Nomex® insulation gaskets can be used between battery cells, around terminals, between PCB or BMS assemblies and metal housings, beneath or around busbars, and within battery PACK structures. Their primary role is to create reliable electrical separation and reduce the risk of unintended conductive contact.
The best insulation gasket is not necessarily the thickest or most heat resistant material. It is the material and construction that provide the required electrical, thermal, mechanical, chemical, and dimensional performance within the available assembly space.
For battery applications, special attention should be given to electrolyte compatibility, adhesive stability, dielectric performance, temperature exposure, creepage and clearance, mechanical vibration, and long term aging.
Precision die cutting allows the insulation component to match the actual geometry of the battery or electrical assembly. Custom round, rectangular, L shaped, U shaped, ring shaped, tab protection, and other complex configurations can be manufactured according to engineering drawings.
Material selection should always be based on the exact Nomex® grade rather than the Nomex® brand name alone. Similarly, adhesive backed products should be evaluated based on the complete construction, including substrate, adhesive, release liner, and final assembly conditions.
For high voltage batteries, electric vehicles, energy storage systems, power electronics, motors, transformers, PCBs, busbars, and electrical connectors, a properly engineered insulation gasket can become an important component of the overall electrical protection system.
This website uses cookies to ensure you get the best experience on our website.
WhatsApp
Phone
